5103-70K SUS304 Stainless Steel Toggle Latch with Locking Hole, Vibratory Polish, Industrial Case Lock

NRH 5103-70K Lockable Toggle Latch - SUS304 Stainless Steel, Vibratory Polish, Padlock Hole, 30kg Clamping Force

The NRH 5103-70K is a lockable toggle latch designed for professional applications where security and cleanability are essential. Crafted from high‑quality SUS304 stainless steel with a fine vibratory polish finish, this latch offers a smooth, burr‑free, and corrosion‑resistant surface. A standard padlock hole integrated into the latch hook provides physical security, while the robust over‑center mechanism delivers a reliable 294N (30kg) clamping force at a lightweight 35g. With detailed engineering drawings (e.g., overall height 70.5mm, mounting plate width 33.5mm, 4x Φ4mm holes), installation is precise and easy.

As a product of NRH Box Hardware (established since 1996), this latch is produced under a certified quality management system. Regarding international compliance (ISO 9001:2000, SGS, RoHS, REACH, SVHC), these standards can be supported based on customer requirements and applicable costs - please contact us for specific certification needs. OEM and ODM services are available for custom applications. For 3D model files or detailed drawings, please contact our team.

Primary Applications - Ideal for Demanding Environments

• Food, beverage and pharmaceutical equipment: Securing inspection windows or access doors on food processing machinery, mixing tanks, and sterilization equipment - meets GMP and wash‑down requirements
• Medical and laboratory instruments: For pharmaceutical refrigerators, sterilization carts, and laboratory instrument cases - providing a clean, lockable, chemically resistant solution
• Marine, naval and outdoor equipment: Locking marine instrument cases, outdoor communication cabinets, and ATV storage boxes - resisting salt spray and humid climates
• Chemical and industrial manufacturing: Used on field control boxes and inspection instrument housings exposed to corrosive atmospheres
• High‑end commercial and professional tool cases: Offering a robust, lockable closure for precision tool carts, metrology calibration cases, and stage audio equipment cases

How It Works - Over‑Center Mechanism with Security

This latch uses an efficient over‑center toggle mechanism with a spring‑assisted action. A simple press on the handle engages the locking arm, pulling two surfaces tightly together and providing positive feedback. The integrated padlock hole on the hook allows a standard padlock to be added, upgrading the closure from “closed” to “locked” - an effective theft‑deterrent for valuable equipment. Lifting the handle releases the clamp, allowing quick access.

Features & Specifications

• Stainless steel durability and clean finish: SUS304 stainless steel with vibratory polish offers superior corrosion resistance and an easy‑to‑clean, smooth surface ideal for hygiene‑sensitive industries
• Dual security: Reliable mechanical latching force plus a standard padlock hole for adding a padlock - enables a security upgrade from “closed” to “locked”
• High clamping force, lightweight: 1500N (153kg) holding capacity at only 35g net weight
• Precision engineering and easy installation: Millimeter‑accurate engineering drawings (overall height 70.5mm, mounting plate width 33.5mm, 4x Φ4mm holes) ensure accurate integration
• Certified quality and custom service: Manufactured under ISO 9001:2000 system. Compliance available upon request. NRH offers flexible OEM/ODM services

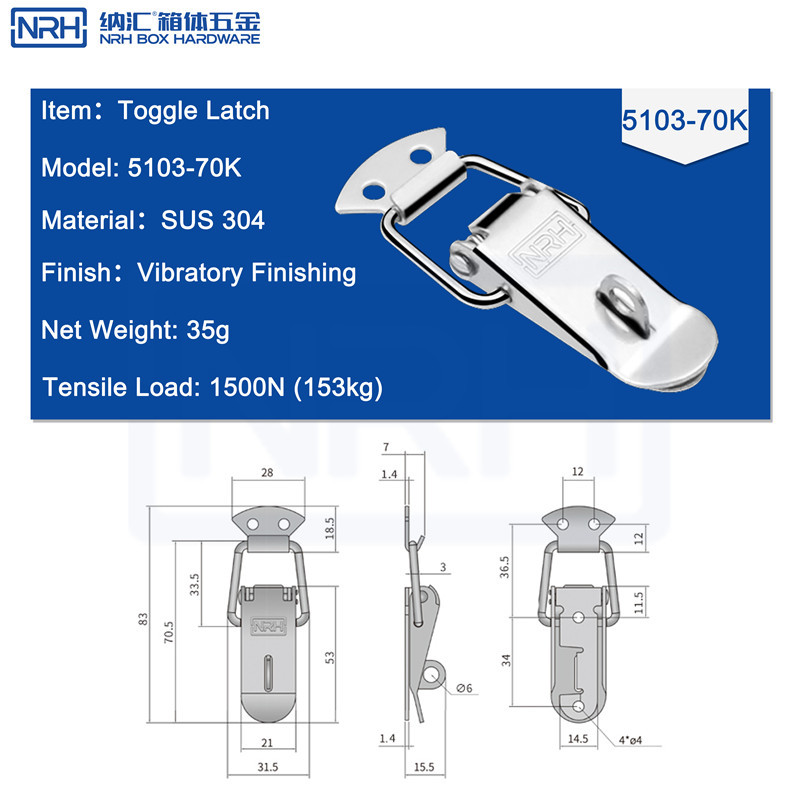

Technical Specifications (Based on Engineering Drawings)

• Brand: NRH Box Hardware
• Model Number: 5103-70K
• Product Name: Toggle Latch (Lockable)
• Material: SUS304 Stainless Steel
• Finish: Vibratory Polish (Vibratory Finishing)
• Net Weight: 35g
• Tensile / Clamping Load: 1500N (153kg)
• Core Security Feature: Integrated padlock hole (for standard padlocks)
• Key Dimensions: Overall Height: 70.5mm, Overall Length: 83mm, Mounting Plate Width: 33.5mm, Mounting Plate Length: 28mm, Hook Span: 36.5mm, Mounting Holes: 4 x Φ4mm, Material Thickness: 1.4mm
• Compliance: ISO 9001:2000, SGS, RoHS, REACH, SVHC (available upon request - contact us for details)
• Additional Info: Manufacturer Since 1996. OEM/ODM Services Available. Detailed engineering drawings and 3D models available on request.

Why Trust NRH

NRH Box Hardware has been producing industrial latches and hardware since 1996. The NRH 5103-70K is made under a certified quality management system. Compliance with ISO, SGS, RoHS, REACH, or SVHC is available upon request - please consult us for feasibility and pricing. Our long‑standing expertise in stainless steel lockable latches ensures a reliable, secure, and hygienic fastening solution for food processing, medical, marine, and industrial applications worldwide.
