NRH
5103-70 SPCC Chrome Plated Spring Toggle Latch, Industrial Fastener
Made to Order

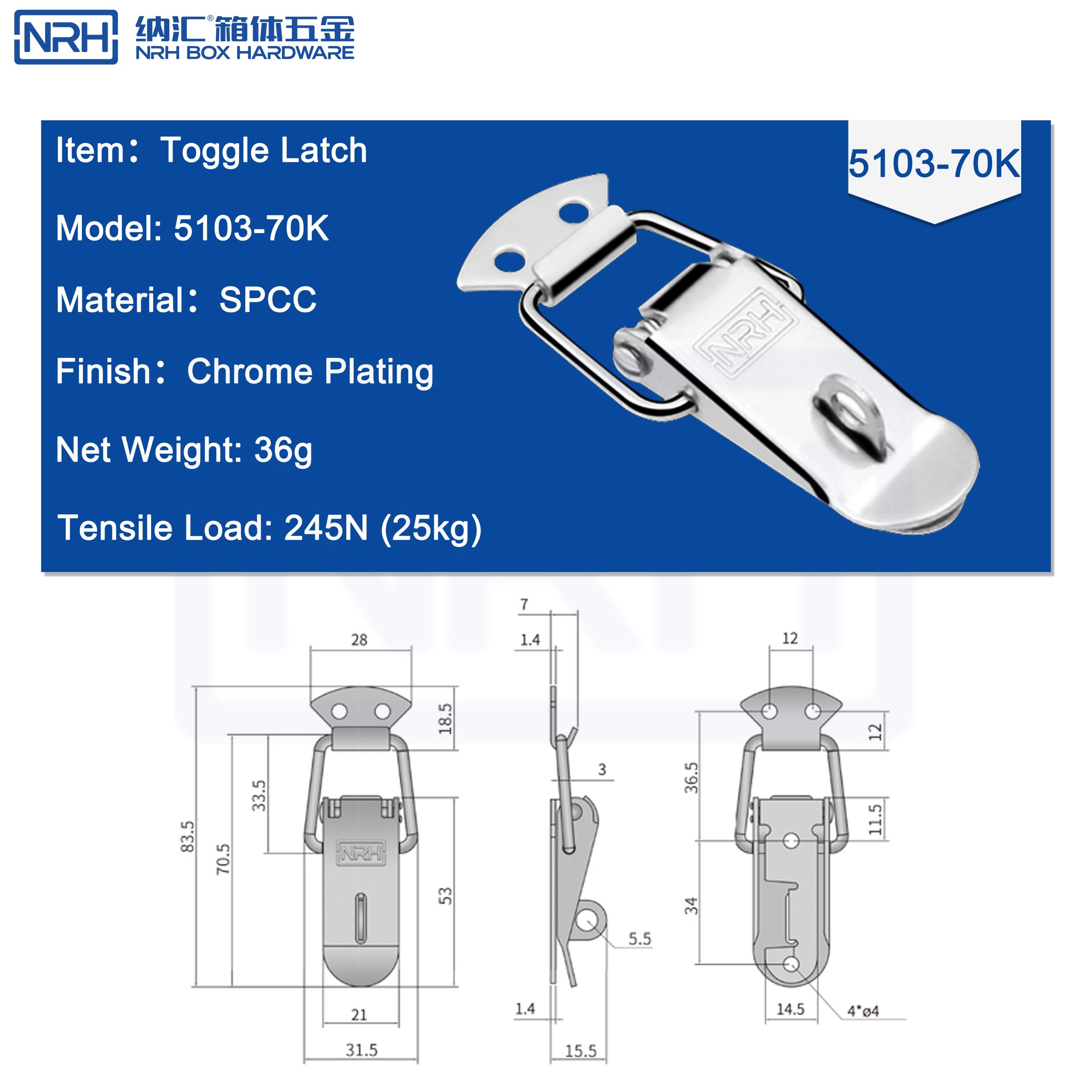

The NRH 5103-70 is a compact and reliable spring toggle latch engineered to securely clamp two panels or objects together. As detailed in the provided product specification image, it is constructed from SPCC (Cold Rolled Steel) with a Chrome Plating finish, offering a bright silver appearance and corrosion resistance. Key specs include a net weight of 37g and a tensile load capacity of 245N (25kg). Detailed multi-view dimensional drawings are provided, showing precise measurements like the 70.5mm latch body length, 83.5mm overall length, and 4 x Φ4.2mm mounting holes for easy integration. NRH, established in 1996, supports OEM/ODM services and holds certifications including ISO 9001, REACH, RoHS, and SVHC.
Technical Specifications (Based on Provided Product Images)
|
Item
|
Specification / Description
|
|---|---|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
5103-70
|
|
Product Name
|
Spring Toggle Latch
|
|
Material
|
SPCC (Cold Rolled Steel)
|
|
Finish
|
Chrome Plating
|
|
Net Weight
|
37g
|
|
Tensile Load
|
245N (25kg)
|
|
Key Dimensions (from drawings)
|
Overall Length: 83.5mm
Latch Body Height: 70.5mm Mounting Plate Width: 33.5mm Mounting Plate Length: 28mm Hook Span: 36.5mm Mounting Holes: 4 x Φ4.2mm Material Thickness: 1.4mm |
|
Brand & Service
|
Since 1996, OEM/ODM Supported
|
|
Quality Compliance
|
ISO 9001, REACH, RoHS, SVHC Compliant
|
(Note: Comprehensive dimensioned drawings are available in the product image. 3D CAD files for design integration can be provided upon request.)
Product Overview: The Reliable Clamping Solution
The NRH 5103-70's primary function is to create a simple, strong, and secure connection between two surfaces. Its internal spring-assisted mechanism ensures smooth, positive action when engaging and disengaging the over-center lock, requiring minimal effort from the user. The Chrome Plating on the SPCC steel provides a durable and rust-resistant finish suitable for various environments. Its compact size (e.g., 70.5mm height) and versatile mounting (via 4 x Φ4.2mm holes) make it an ideal choice for applications where space and reliable fastening are key considerations.
Core Features
-
Secure & Smooth Clamping Action: Engineered to firmly clamp two objects together with a reliable 245N force. The spring assist ensures effortless operation and a secure feel.
-
Durable & Protective Build: The combination of SPCC steel and Chrome Plating offers a cost-effective balance of strength and good environmental resistance.
-
Compact & Precise Design: Detailed engineering drawings with exact dimensions (e.g., 83.5mm L, 33.5mm W) allow for predictable performance and straightforward installation in space-conscious designs.
-
Trusted Brand & Certifications: Manufactured by NRH with a heritage since 1996. The product is backed by international quality and material safety certifications (ISO 9001, REACH, RoHS, SVHC), and OEM/ODM services are available.
Ideal Applications
This versatile and robust latch is perfect for numerous applications requiring a secure, easy-to-operate closure:
-
Industrial & Electrical Enclosures: Securing doors on control panels, PLC cabinets, small server racks, and network equipment boxes.
-
Communication & Outdoor Cabinets: For outdoor telecommunication boxes, fiber optic terminal enclosures, and power distribution cases where the chrome finish resists elements.
-
Commercial & Public Equipment: Vending machine service doors, parcel locker access panels, exhibition display case backs, and public signage enclosures.
-
Professional Equipment Cases: Clamping lids on field service toolkits, medical device carts, audio/video equipment road cases, and surveying instrument boxes.
-
Transportation & Vehicle Interiors: Securing access panels, battery covers, or storage compartment doors in utility vehicles, RVs, or marine applications.
-
Machinery & Automation Guards: Fastening removable safety shields or inspection hatches on smaller industrial machinery and automation equipment.
Clamp with confidence. The NRH 5103-70 combines a compact form factor, smooth spring action, and proven durability to provide a reliable fastening solution across countless industries.
| Brand | NRH |
|---|---|
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | Made to Order |
Toggle Latches Applications
Widely used across industries - from industrial manufacturing to specialized fields, delivering reliable hardware solutions.
Manufacturing & Industrial
Latches for production line equipment enclosures, ensuring operational safety and secure closure.
Automotive & Transportation
Latches for transit cases, preventing loosening during long-distance road transport.
Electronics & Technology
Latches for electronic cabinets, providing dust-proof and tamper-resistant security.
Medical & Healthcare
Corrosion-resistant latches for medical device enclosures, meeting strict hygiene standards.
Construction & Engineering
Latches for toolboxes and outdoor equipment, built to withstand harsh weather conditions.
Aerospace
Lightweight, high-strength latches for aviation cases, meeting aerospace weight requirements.
Telecommunications
Security latches for telecom cabinets, preventing unauthorized access to critical infrastructure.
Marine & Offshore
316 stainless steel latches for marine enclosures, resisting saltwater corrosion in harsh sea conditions.
Energy & Power
Heavy-duty latches for power distribution cabinets, ensuring safe closure in high-voltage environments.
Defense & Military
MIL-SPEC latches for military cases, meeting rigorous defense-grade standards.
Logistics & Warehousing
Latches for shipping cases, reliable and durable through frequent loading and unloading cycles.
Security & Surveillance
Tamper-proof latches for surveillance cabinets, preventing unauthorized access to security equipment.
Rail & Transit
Fire-retardant latches for train equipment cabinets, meeting railway fire safety standards.
Oil & Gas
ATEX-certified explosion-proof latches for hazardous area enclosures.
Data Centers
Latches for server racks, providing secure access control for IT maintenance operations.
What is the minimum order quantity?
Our minimum order quantity is 1 units. For larger orders, please contact us for volume pricing.
What payment methods do you accept?
We accept T/T, L/C, PayPal, and Western Union. Payment terms can be negotiated based on order size and business relationship.
Do you offer custom OEM/ODM services?
Yes, we provide OEM and ODM services. Please contact our sales team to discuss your specific requirements.
What are the shipping options?
We offer global shipping via DHL, FedEx, UPS, and sea freight. Shipping costs are calculated based on destination and order quantity.
