NRH 5102-88K Stainless Steel Toggle Latch | Heavy Duty Spring Latch for Enclosures

NRH 5102-88K Toggle Latch - SUS304 Stainless Steel, Vibratory Finish, Spring-Assisted, 102kg Load

The NRH 5102-88K is a premium‑grade stainless steel toggle latch engineered for demanding applications where corrosion resistance, hygiene, and mechanical strength are non‑negotiable. Manufactured from SUS304 stainless steel (AISI 304) and finished with a smooth vibratory finishing, this latch outperforms plated carbon steel alternatives in salt spray, chemical exposure, and high‑humidity environments. The integrated spring‑assisted over‑center mechanism provides positive locking with tactile feedback, while the 1000N (102kg) tensile load capacity ensures secure closure even for heavy doors or vibration‑prone enclosures. Weighing only 63g and with an overall length of 88mm, it delivers exceptional strength‑to‑weight ratio for portable and space‑constrained designs.

As a product of NRH Box Hardware (established since 1996), this latch is produced under a certified quality management system. Regarding international compliance (ISO 9001, SGS, REACH, RoHS, SVHC), these standards can be supported based on customer requirements and applicable costs - please contact us for specific certification needs. OEM and ODM services are available for custom hole patterns, lever shapes, logo engraving, or finish variations. Detailed 2D engineering drawings and 3D CAD models are provided upon request to streamline your product integration.

Why SUS304 Stainless Steel + Vibratory Finishing?

SUS304 (AISI 304) is the most widely used austenitic stainless steel, offering excellent resistance to oxidation, rust, and a wide range of chemicals. Unlike SPCC with chrome plating - which can chip or scratch - solid SUS304 retains its corrosion resistance even if the surface is abraded. The vibratory finishing process uses abrasive media in a vibrating bowl to uniformly deburr, radius edges, and create a satin, non‑reflective surface. Benefits include:

• Hygienic and easy to clean - no crevices or sharp edges trap contaminants; ideal for food, pharmaceutical, and medical applications.
• Superior corrosion protection - withstands salt spray (marine), acidic cleaners, and outdoor exposure without red rust.
• Consistent appearance - batch‑to‑batch uniformity eliminates manual polishing variation.
• Improved fatigue life - removal of surface stress risers (burrs, micro‑cracks) extends mechanical cycle life.

Primary Applications - Engineered for Critical Environments

This versatile latch is designed to securely fasten panels, doors, and lids on demanding enclosures:

• Military and defense equipment: Field communication cases, weapon storage boxes, ruggedized equipment containers, military transport cases
• Aerospace and aviation: Flight cases for sensitive instruments, ground support equipment housings, aircraft maintenance tool kits
• Industrial and machinery: CNC machine guards, electrical control cabinets, welding machine enclosures, heavy‑duty industrial toolboxes
• Food, beverage and pharmaceutical processing: Equipment access panels, inspection hatches, processing machine doors requiring hygiene and cleanability
• Marine and offshore applications: Boat deck boxes, marine electronics housings, equipment cases exposed to saltwater environments
• Medical and laboratory equipment: Sterilization container cases, mobile medical cart drawers, sensitive instrument housings
• Transportation and logistics: Shipping containers for high‑value goods, truck toolboxes, custom protective cases for sensitive cargo
• Telecommunications: Outdoor fiber optic terminal boxes, network equipment shelters, field service kits

How It Works - Spring‑Assisted Over‑Center Toggle Mechanism

This latch uses a two‑stage spring‑assisted toggle mechanism:

• Stage 1 (Spring engagement): When the lever is pushed down, an internal compression spring takes up initial slack between the hook and strike plate, providing a smooth, low‑effort start.
• Stage 2 (Over‑center lock): As the lever passes the mechanical center point, the toggle linkage generates a rapid increase in clamping force - pulling the two surfaces tightly together. The spring also stores energy to help snap the lever into the fully closed position, giving a crisp “click” that confirms secure locking.

To open, simply lift the lever. The spring assists in pushing the toggle past center, reducing operator effort and preventing jamming. This design ensures consistent clamping force even after thousands of cycles, compensates for gasket compression, and resists vibration‑induced loosening - critical for transport cases and machinery guards.

Features & Technical Benefits

• Ultra‑high load capacity: 1000N (102kg) tensile load - suitable for heavy lids, pressure‑sealed enclosures, and high‑vibration applications
• True stainless steel construction: SUS304 body, lever, and base plate - not just plated - ensures corrosion resistance even after surface wear
• Hygienic vibratory finish: Smooth, burr‑free, easy‑to‑sanitize surface; meets GMP and food‑contact requirements (with proper sealing)
• Spring‑assisted smooth operation: One‑handed use, reduced fatigue, positive tactile feedback on closure
• Compact and lightweight: 63g net weight, 88mm overall length - high strength‑to‑weight ratio for portable cases
• Precision mounting: 4×Φ5.2mm mounting holes on a standardized pattern; 1.4mm material thickness for self‑tapping screws or through‑bolt mounting
• OEM/ODM flexibility: Custom lever lengths, hole positions, logo stamping, or alternative finishes (e.g., electropolishing) available

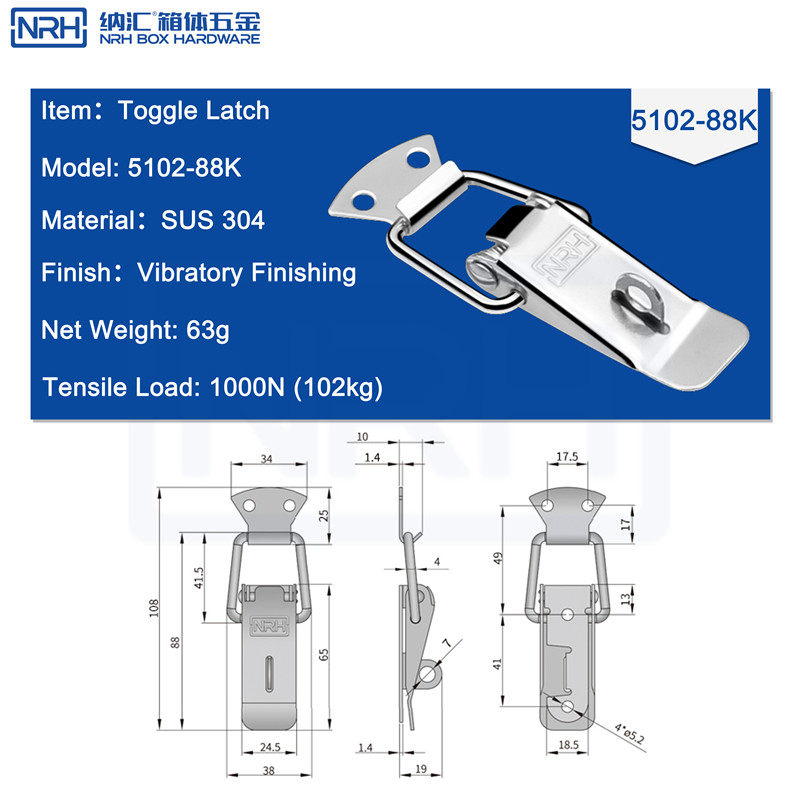

Technical Specifications (Based on Product Image)

• Brand: NRH Box Hardware
• Model Number: 5102-88K
• Product Name: Toggle Latch (Spring‑Assisted)
• Material: SUS304 Stainless Steel
• Finish: Vibratory Finishing
• Net Weight: 63g
• Tensile Load: 1000N (102kg)
• Key Dimensions: Overall Length: 88mm, Width: 25mm, Height: 34mm, Mounting Holes: 4×Φ5.2mm (refer to engineering drawing for complete dimensions)
• Compliance: ISO 9001, SGS, REACH, RoHS, SVHC (available upon request - contact us for details)
• Additional Info: Manufacturer Since 1996. OEM/ODM Services Available. 2D drawings and 3D CAD models on request.

Why Trust NRH

NRH Box Hardware has been designing and manufacturing industrial latches, hinges, and handles since 1996. Our products are used globally by leading brands in military, aerospace, industrial automation, medical equipment, and food processing. The NRH 5102-88K is produced under an ISO 9001 certified quality management system with full batch traceability. Compliance with REACH, RoHS, and SVHC is available upon request, ensuring your end products meet global environmental regulations. For engineers seeking a truly corrosion‑proof, high‑strength, and hygienic toggle latch, the NRH 5102-88K delivers unparalleled reliability.
