R5101-105 SUS201 Stainless Steel Spring Toggle Latch, Heavy Duty Industrial Fastener
Made to Order

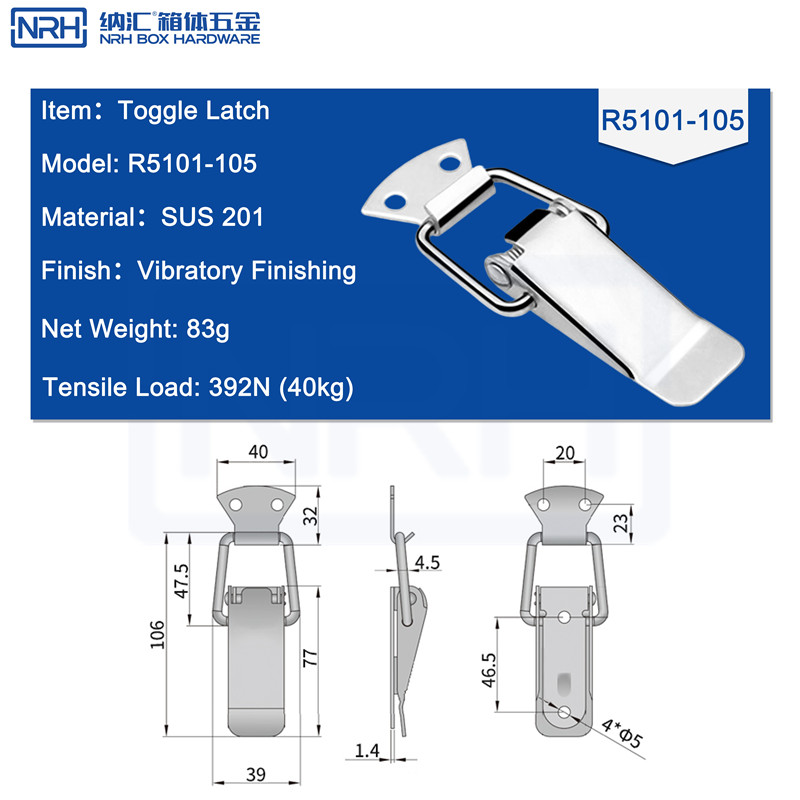

The NRH R5101-105 is a professional-grade heavy-duty industrial toggle latch designed for demanding applications requiring high load capacity and frequent operation. As shown, it is precision-manufactured from SUS 201 Stainless Steel and features a Vibratory Finish, presenting a robust, smooth texture. Key specs: net weight 83g and a high tensile load of 392N (40kg). Detailed orthogonal drawings accurately annotate key dimensions like the 106mm body length, 39mm mounting plate width, and 4*Φ5 mounting holes, providing a reliable basis for design and installation. 3D CAD files for design and simulation are available upon request.
Technical Specifications (Based on Product Images)
|
Item
|
Specification / Description
|
|---|---|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
R5101-105
|
|
Product Name
|
Toggle Latch / Industrial Latch
|
|
Material
|
SUS 201 Stainless Steel
|
|
Finish
|
Vibratory Finishing
|
|
Net Weight
|
83g
|
|
Tensile Load
|
392N (40kg)
|
|
Key Dimensions (from drawings)
|
Latch Body Length: 106mm
Mounting Plate Width: 39mm Hook Span: 47.5mm Mounting Holes: 4 x Φ5mm Material Thickness: 1.4mm |
|
Brand & Service
|
Since 1996, OEM/ODM Supported
|
|
Quality Compliance
|
ISO 9001:2008, SGS, REACH, RoHS, SVHC, CNAS
|
(Note: The above are key dimensions from drawings. For 3D CAD files for design integration, please contact us.)
Product Overview: Industrial Latch for Demanding Environments
The NRH R5101-105 industrial toggle latch utilizes a robust over-center locking mechanism enhanced with an internal spring for improved operation. A manual press generates strong clamping force, with its high 392N rated holding capacity securely locking large, heavy, or vibration-prone doors and panels. The SUS 201 Stainless Steel construction provides excellent strength and corrosion resistance, while the Vibratory Finish ensures smooth operation. Backed by NRH's heritage since 1996 and full international certifications, it delivers a reliable industrial fastening solution.
Core Features
-
High Load & Smooth Action: Delivers a high 392N (40kg) tensile load. The internal spring reduces effort and provides positive feedback, designed for heavy-duty industrial use.
-
High-Strength Stainless Steel Build: Made from SUS 201 Stainless Steel for high structural strength and good corrosion resistance, ensuring durability in industrial settings.
-
Precision Engineering & Detailed Drawings: Meticulously designed with precise dimensions (e.g., 106mm length). Comprehensive drawings facilitate accurate integration and installation.
-
Certified Quality & Full Service: Manufactured under the ISO 9001:2008 quality system, compliant with REACH, RoHS, SVHC. OEM/ODM services and 3D drawing support are available.
Ideal Applications
This heavy-duty industrial latch is ideal for:
-
Large Industrial & Electrical Enclosures: For heavy doors on large power distribution cabinets, automation control cabinets, and server racks.
-
Heavy Machinery Housings: Securing access panels and guards on large machine tools, generator sets, and construction machinery.
-
Industrial Transport & Storage Equipment: Door latching for heavy freight containers and large equipment shipping crates.
-
Special Vehicle & Marine Equipment Boxes: Securing covers on equipment boxes for communication vehicles, utility trucks, and marine applications.
Reliable industrial fastening, from professional manufacturing. The NRH R5101-105 industrial latch provides sturdy closure for your equipment with its strong load capacity, smooth spring action, and reliable construction.
Keywords for SEO: R5101-105, Industrial Toggle Latch, Spring Toggle Latch, Heavy Duty Latch, SUS201 Stainless Steel Latch, 392N Load, Cabinet Latch, Industrial Fastener, NRH Hardware.
| Brand | NRH |
|---|---|
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | Made to Order |
