R5102-90K Stainless Steel Spring Toggle Latch with Padlock Hole, SUS201
Made to Order
The NRH R5102-90K is a heavy-duty latch combining spring-assisted operation with physical security. Product images show its robust construction from SUS 201 Stainless Steel with a fine finish. Key specs are clear: net weight 53g and a high tensile load of 343N (35kg). Its standout features are an integrated circular padlock hole on the hook and an internal spring mechanism for smooth operation and positive feedback. Provided orthogonal drawings detail all key dimensions like the 90.7mm overall height and mounting holes (4xΦ5.3mm) for precise installation. 3D CAD files are available upon request for your digital design and assembly simulation.
Technical Specifications (Based on Product Images)
|
Item
|
Specification / Description
|
|---|---|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
R5102-90K
|
|
Product Name
|
Toggle Latch
|
|
Material
|
SUS 201 Stainless Steel
|
|
Finish
|
Vibratory Finishing
|
|
Net Weight
|
53g
|
|
Tensile Load
|
343N (35kg)
|
|
Key Features
|
Integrated Padlock Hole, Spring-Assisted Mechanism
|
|

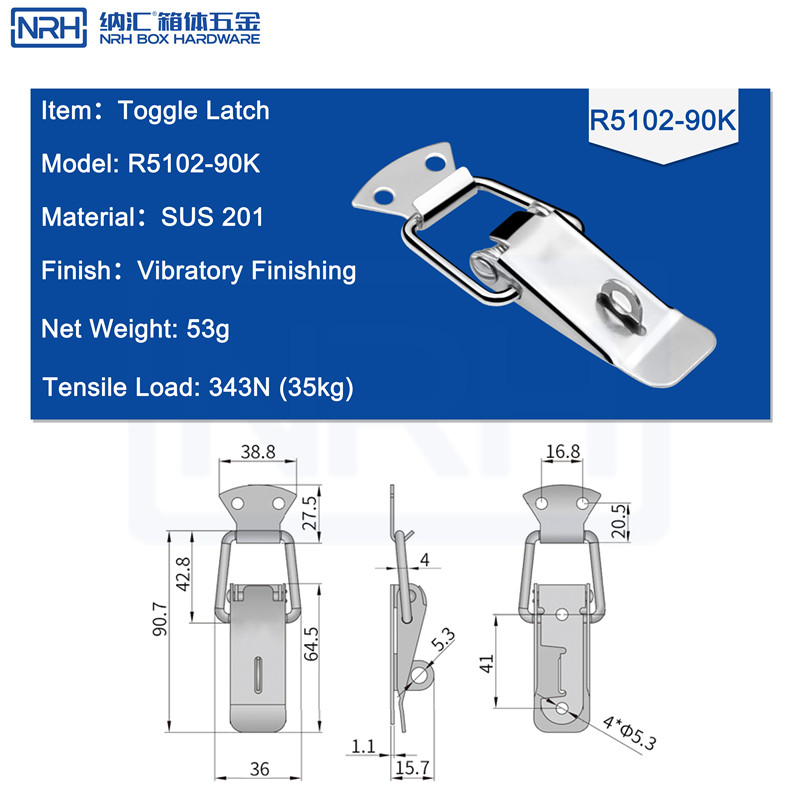

Key Dimensions (from drawings)
|
Overall Height: 90.7mm
Mounting Plate Width: 38.8mm Mounting Plate Length: 27.5mm Hook Span: 42.8mm Mounting Holes: 4 x Φ5.3mm Material Thickness: 1.1mm |
|
Brand & Service
|
Since 1996, OEM/ODM Supported
|
|
Quality Compliance
|
ISO 9001:2000, SGS, REACH, RoHS, SVHC, CNAS
|
(Note: The above are key dimensions. For 3D CAD files for design integration, please contact us.)
Product Overview: Spring-Assisted Smoothness with Locking Security
The NRH R5102-90K enhances reliable mechanical fastening with spring-assisted operation and padlock security. Its built-in spring mechanism ensures smoother, easier pressing and release actions with positive feedback. The over-center locking design generates a strong 343N clamping force for tight closure. The dedicated padlock hole on the latch hook allows for adding a standard padlock, upgrading security from "fastened" to "locked" against unauthorized access. The SUS 201 Stainless Steel construction ensures structural strength and corrosion resistance.
Core Features
-
Spring-Assisted for Smooth Operation: The internal spring ensures fluid, low-effort manual engagement and disengagement with a positive feel, improving usability and efficiency.
-
Dual Security: Strong Hold & Padlock Ready: Delivers a powerful 343N clamping force and includes an integrated padlock hole for adding a padlock, providing physical theft deterrence and access control.
-
Robust Stainless Steel Build: Made from SUS 201 Stainless Steel for excellent strength and durability, suitable for long-term use in demanding industrial settings.
-
Precision Engineering & Full Certifications: Precisely dimensioned with detailed drawings. Manufactured in compliance with the ISO 9001:2000 quality system and certified to REACH, RoHS, SVHC international standards.
Ideal Applications
This lockable, spring-assisted heavy-duty latch is ideal for high-security and high-frequency access applications:
-
High-Value Industrial Cabinets: For frequently accessed server racks, network cabinets, and power distribution units, offering smooth operation and lockable security.
-
Machinery Safety Guards & Access Hatches: Securing guards that require regular access. Spring assistance eases operation, and the padlock hole supports safety locking (LOTO) during maintenance.
-
Outdoor Infrastructure & Communication Cabinets: Locking outdoor cabinets for base stations and utility boxes. The spring mechanism accommodates frequent access, and the padlock provides theft prevention.
-
Professional Tool & Material Storage: Providing an easy-to-operate and lockable closure for heavy-duty tool chests and maintenance parts bins.
Smooth operation, definitive security. The NRH R5102-90K enhances efficiency with its spring assist and reinforces safety with its padlock hole, delivering a reliable and convenient closure solution for your equipment.
| Brand | NRH |
|---|---|
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | Made to Order |
