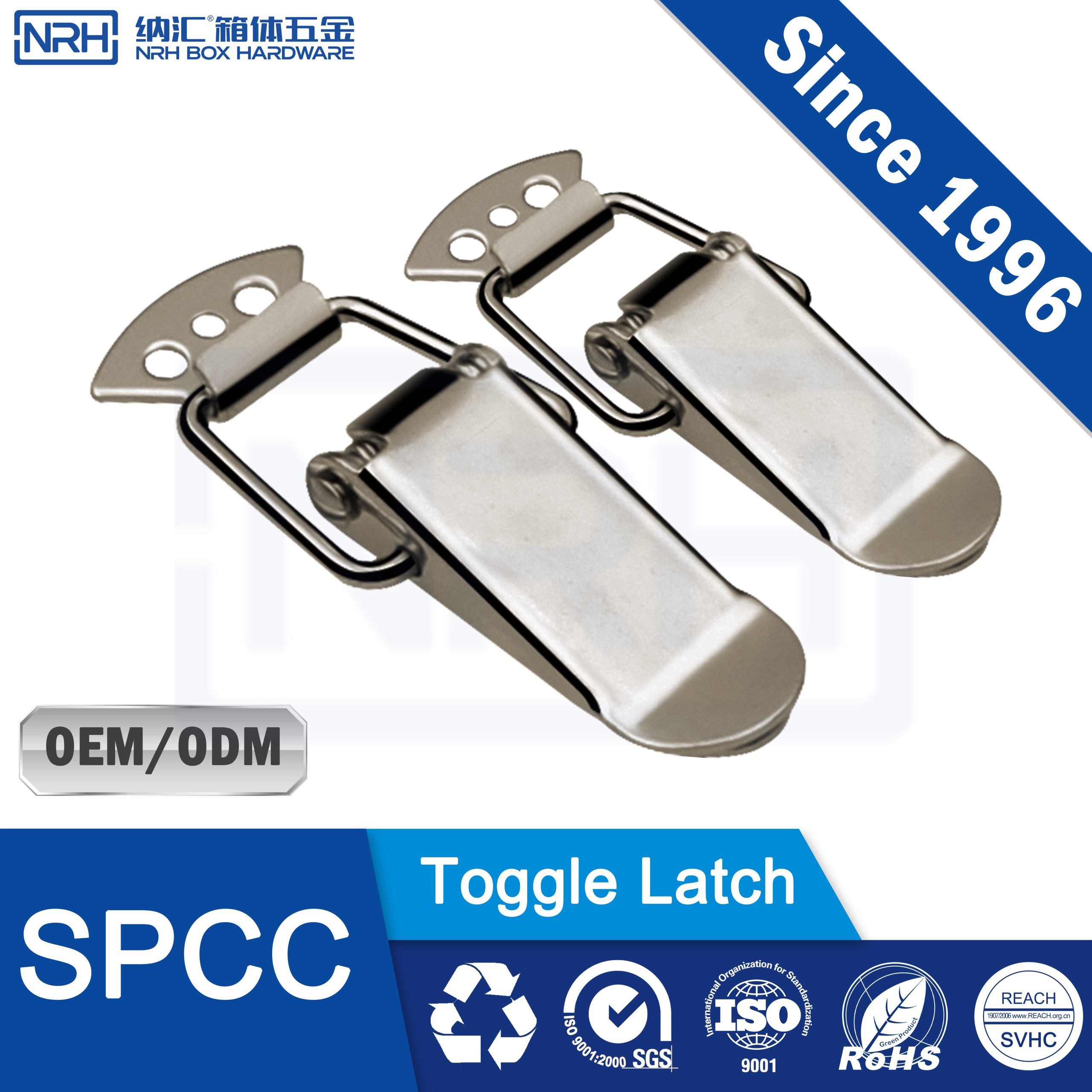

R5103-75K Heavy Duty Toggle Latch with Padlock Hole, Nickel Plated Panel Fastener
Made to Order
The NRH R5103-75 is a robust, heavy-duty toggle latch designed for applications requiring superior clamping force and the option for padlock security. Engineered to withstand significant stress, it boasts a high tensile load capacity of 245N (25kg). Constructed from durable SPCC steel with a protective Nickel Plating finish, it offers strength and corrosion resistance. A key security feature is the integrated padlock hole, allowing a standard padlock to be added to physically prevent opening. Weighing 31g and built to precise specifications, it is a reliable solution for securing heavy panels, doors, and enclosures where both strength and controlled access are needed.
Technical Specifications (Based on Provided Product Drawing & Image)
|
Item
|
Specification / Description
|
|---|---|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
R5103-75K
|
|
Product Name
|
Toggle Latch
|
|
Material
|
SPCC (Steel)
|
|
Finish
|
Nickel Plating
|
|
Net Weight
|
31g
|
|
Tensile Load
|
245N (25kg)
|
|
Security Feature
|
Padlock Hole (for external padlock)
|
|
Key Dimensions (from drawing)
|
Overall Height: 76mm
Top Plate Width: 31mm Mounting Bracket Height: 19.5mm Latch Body Width: 34.5mm Mounting Holes: 4 x Ø4.2mm |
|
Compliance & Service
|
ISO 9001:2008, SGS, REACH, RoHS Compliant; OEM/ODM Supported
|
Product Overview: High-Strength Clamping with Locking Capability
The primary function of the NRH R5103-75 is to securely clamp two objects or panels together with significant force. The user engages the robust over-center locking mechanism by pressing the handle, creating a tight, vibration-resistant hold. For applications demanding restricted access, the integrated padlock hole allows the use of an external padlock. Once the padlock is in place, the latch cannot be disengaged, adding a vital layer of physical security. The nickel-plated SPCC steel construction ensures durability in demanding environments, while the design conforms to international quality and material safety standards (ISO 9001, REACH, RoHS).
Core Features
-
Primary Function: High-Strength Clamping: Engineered to firmly fasten two heavy-duty panels or surfaces together with a 245N clamping force, preventing accidental opening under stress or vibration.
-
Padlock-Ready for Enhanced Security: The dedicated padlock hole enables the use of a standard padlock to lock the latch in the closed position, preventing unauthorized access to valuable equipment or hazardous areas.
-
Robust & Durable Build: Constructed from nickel-plated SPCC steel, providing an excellent balance of high strength, impact resistance, and corrosion protection for long-term industrial use.
-
Certified Quality & Customization: Manufactured under an ISO 9001:2008 quality management system, compliant with REACH/RoHS, and backed by NRH's expertise since 1996. OEM/ODM services are available.
Ideal Applications
This heavy-duty latch with security potential is perfect for robust applications requiring a strong hold and optional locking:
-
Heavy-Duty Industrial Cabinets & Enclosures: Securing and locking large doors on electrical switchgear, control panels, and server racks.
-
Machinery Guards & Safety Covers: Firmly fastening heavy protective guards on industrial equipment, with the option to add a padlock for safety lockout (LOTO) during maintenance.
-
Secure Storage & Transport Cases: Providing a strong, lockable closure for heavy tool chests, generator cases, ammunition boxes, or sensitive equipment transit containers.
-
Outdoor Utility & Telecom Boxes: Locking robust field cabinets that house communication or power distribution equipment.
Clamp with force, lock with confidence. The NRH R5103-75 delivers powerful clamping for heavy panels, plus the option to add a padlock for definitive security.
