NRH R5151-33 Toggle Latch | Spring Loaded Stainless Steel Latch | Cabinet Latch
Made to Order
NRH R5151-33 Toggle Latch | Spring Loaded Stainless Steel Latch | Cabinet Latch
The NRH R5151-33 is a compact and efficient toggle latch made from SUS 201 stainless steel. Featuring a spring-loaded mechanism and a clean vibratory finish, this latch is designed for secure closure on lightweight to medium-duty applications where corrosion resistance and reliable performance are essential.
Primary Applications:
-
Light Industrial Enclosures: Small control boxes, instrument cases, measurement device housings.
-
Electronics & Communications: Network equipment cases, server blade enclosures, telecom boxes.
-
Transportation & Mobility: UAV (drone) cases, portable electronics cases, vehicle glove compartments.
-
Consumer Products: Small toolboxes, sample cases, custom project enclosures.
How It Works (Operating Principle):
This latch utilizes a spring-loaded toggle action. Pushing the lever down engages the hook with the strike plate, and the over-center action locks it securely. The integrated spring assists in the release action, popping the lever open when disengaged. This design ensures positive latching and easy one-handed operation, with the three mounting points (as per the 4*Φ3.2mm holes) providing stable installation.
Features & Specifications:
-
Corrosion-Resistant Material: Constructed from SUS 201 stainless steel for good durability and rust resistance.
-
Spring-Assisted Operation: Integrated spring ensures smooth opening action and positive engagement.
-
Clean Surface Finish: Vibratory finishing provides a uniform, satin-like appearance and deburred edges.
-
Compact & Lightweight: With a total height of 35.5mm and a net weight of only 7g, it's ideal for space and weight-sensitive applications.
-
Secure Load Rating: Designed to withstand a tensile load of 78N (8kg), suitable for securing small doors and panels.
-
Easy Installation: Clear dimensional drawing with 4x Φ3.2mm mounting holes allows for precise and straightforward installation.
Technical Specifications:
|
Item
|
Specification / Description
|
|---|---|
|
Brand
|
NRH (Na Hui Box Hardware)
|
|
Model Number
|
R5151-33
|
|
Product Name
|
Toggle Latch
|
|
Primary Material
|
SUS 201 Stainless Steel
|
|
Surface Finish
|
Vibratory Finishing
|
|
Product Weight
|
7g
|
|
Tensile Load
|
78N (8kg)
|
|

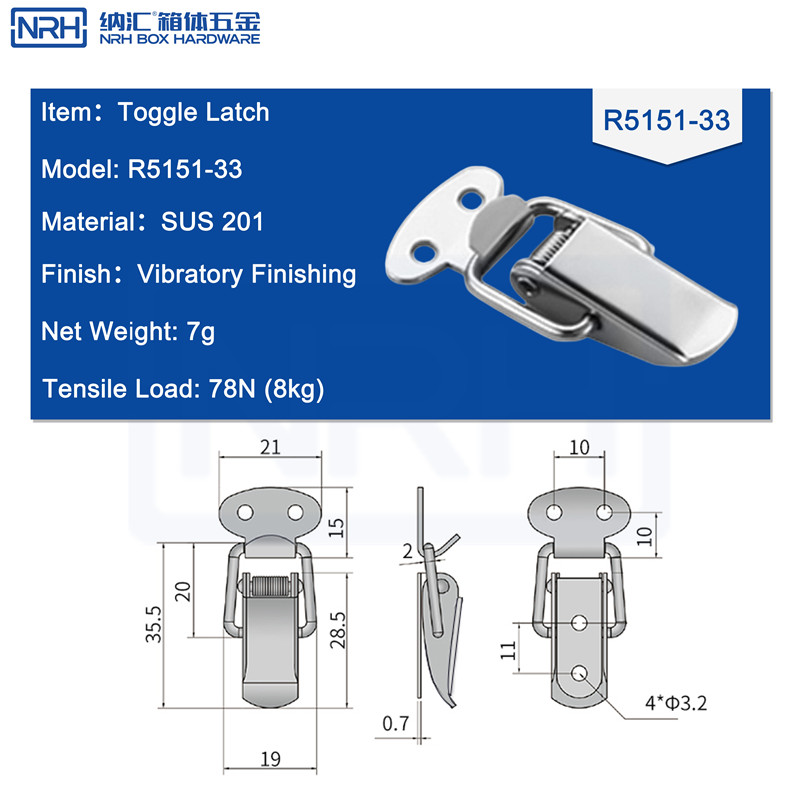

Key Dimensions (refer to drawing)
|
Total Height: 35.5mm, Various widths and depths as per drawing, Mounting Holes: 4 x Φ3.2mm.
|
|
Note
|
Data is for reference only.
|
| Brand | NRH |
|---|---|
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | Made to Order |
Toggle Latches Applications
Widely used across industries - from industrial manufacturing to specialized fields, delivering reliable hardware solutions.
Manufacturing & Industrial
Latches for production line equipment enclosures, ensuring operational safety and secure closure.
Automotive & Transportation
Latches for transit cases, preventing loosening during long-distance road transport.
Electronics & Technology
Latches for electronic cabinets, providing dust-proof and tamper-resistant security.
Medical & Healthcare
Corrosion-resistant latches for medical device enclosures, meeting strict hygiene standards.
Construction & Engineering
Latches for toolboxes and outdoor equipment, built to withstand harsh weather conditions.
Aerospace
Lightweight, high-strength latches for aviation cases, meeting aerospace weight requirements.
Telecommunications
Security latches for telecom cabinets, preventing unauthorized access to critical infrastructure.
Marine & Offshore
316 stainless steel latches for marine enclosures, resisting saltwater corrosion in harsh sea conditions.
Energy & Power
Heavy-duty latches for power distribution cabinets, ensuring safe closure in high-voltage environments.
Defense & Military
MIL-SPEC latches for military cases, meeting rigorous defense-grade standards.
Logistics & Warehousing
Latches for shipping cases, reliable and durable through frequent loading and unloading cycles.
Security & Surveillance
Tamper-proof latches for surveillance cabinets, preventing unauthorized access to security equipment.
Rail & Transit
Fire-retardant latches for train equipment cabinets, meeting railway fire safety standards.
Oil & Gas
ATEX-certified explosion-proof latches for hazardous area enclosures.
Data Centers
Latches for server racks, providing secure access control for IT maintenance operations.
What is the minimum order quantity?
Our minimum order quantity is 1 units. For larger orders, please contact us for volume pricing.
What payment methods do you accept?
We accept T/T, L/C, PayPal, and Western Union. Payment terms can be negotiated based on order size and business relationship.
Do you offer custom OEM/ODM services?
Yes, we provide OEM and ODM services. Please contact our sales team to discuss your specific requirements.
What are the shipping options?
We offer global shipping via DHL, FedEx, UPS, and sea freight. Shipping costs are calculated based on destination and order quantity.
