NRH 4503-193 Rubber Strap Case Handle – 15kg Adjustable Black Lightweight
In Stock
Quick Specifications
| SKU | 4503-193-PVC-BK |
|---|---|
| Weight | 61 g |
| Dimensions | 190x25.5x9 mm |
| Material | Polyvinyl Chloride（PVC） |
| Load Capacity | 15 kg |
| Origin | China |
| Certification | CE, ISO9001, UL, SGS, RoHS |
| MOQ | 1 |
| Lead Time | 7-30 days |
| Sample | Available |
NRH 4503-193 Rubber Strap Case Handle - Black, Adjustable Length, 15kg Load, Ultra‑Lightweight
For lightweight portable cases that need a comfortable, flexible carry solution, the NRH 4503-193 is a rubber strap case handle. Made from high‑flexibility PVC/rubber composite with a matte black finish, it is soft, durable, and weighs just 61g. The key feature is adjustable length: the mounting hole center distance can be set between 190mm and 204mm, allowing one handle to fit multiple case widths. Rated for 15kg load, it's perfect for briefcases, sample cases, small instrument cases, flight cases, medical kits, and photography equipment cases. Two mounting holes (2×Φ3mm) enable surface mounting. The adjustable design reduces SKU inventory and tooling costs.
Manufactured under ISO 9001. REACH, RoHS compliance available on request. OEM/ODM modifications (color, logo) welcome. 2D/3D CAD drawings supplied.

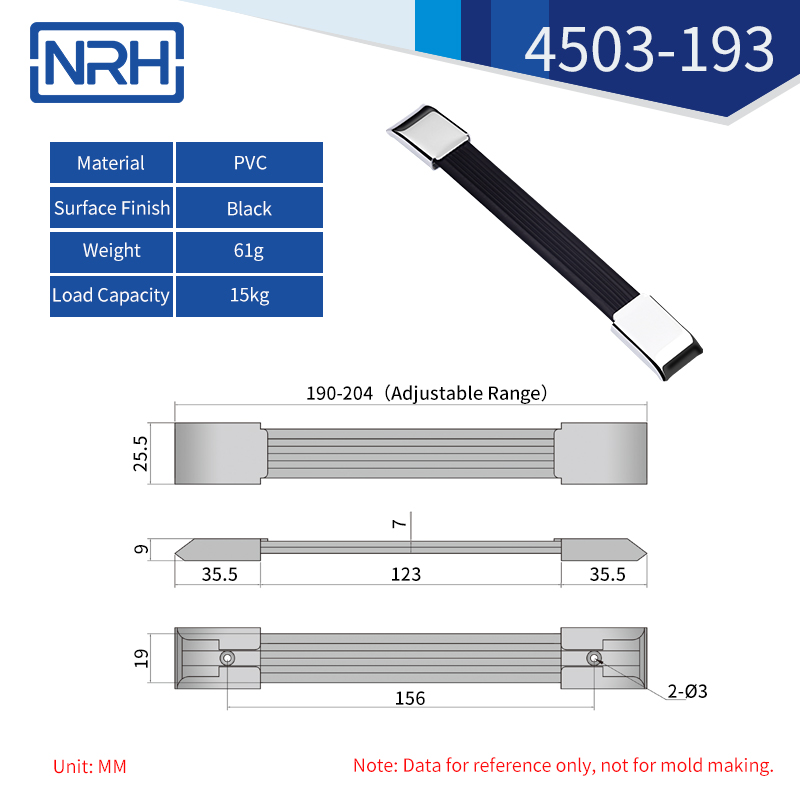

Key dimensions (see drawing): adjustable range 190-204mm (mounting hole center distance), handle body length approx. 156mm, width 25.5mm, thickness 9mm. Mounting holes 2×Φ3mm. Additional reference dimensions: 123mm, 35.5mm, 19mm, 7mm. Follow drawing for precise cutout.
Flexible Strap Design: Lightweight, Comfortable, Adjustable
The PVC/rubber material provides excellent flexibility, impact resistance, and a soft touch. The matte black finish resists scratches and reduces glare. The handle hangs naturally when not in use, without affecting case stacking.
Adjustable Length: One Handle Fits Multiple Cases
Fixed‑length handles require different SKUs for different case widths. This handle's mounting distance adjusts from 190mm to 204mm (via a simple sliding mechanism - see drawing), allowing one model to cover a range of sizes. Reduces inventory complexity and simplifies production planning.
Applications - Ideal for Lightweight, Multi‑Size Cases
- Business briefcases / document cases - ultra‑light, comfortable for daily commute
- Sample display / presentation cases - one handle fits multiple product sizes
- Small instrument / meter cases - 15kg capacity sufficient, protects delicate equipment
- Pharmaceutical transport cases / medical sample cases - lightweight for delivery
- Flight cases / road cases - handle hangs down, safe for stacking
- Medical first aid kits / field medical cases - quick lift, easy to carry
- Photography equipment cases / lens cases - soft grip, comfortable for extended carrying
- Lightweight toolboxes / parts bins - easy to carry, no added bulk
- Children's toy storage boxes - safe, lightweight, easy for small hands
Installation - Surface Mount, Simple & Secure
The handle mounts directly to the case surface - no complex cutouts. Align the two mounting holes with pre‑drilled positions on the case, then secure with M3 screws or rivets. For heavy loads, use backing washers on the inside to distribute stress and prevent tearing. Do not overtighten to avoid damaging the flexible material.
Key Advantages
- Adjustable length (190-204mm) - one SKU fits multiple case widths, reduces inventory
- 15kg rated load - suitable for everyday lightweight cases
- PVC/rubber composite - flexible, impact‑resistant, ultra‑light (61g), soft grip
- Matte black finish - scratch‑resistant, non‑reflective
- Surface mount, easy installation - 2×Φ3mm holes, fits common patterns
- OEM ready - custom colors, logo printing available
Technical Specifications
- Brand/Model: NRH 4503-193
- Material: Flexible PVC/Rubber Composite
- Finish: Matte Black
- Weight: 61g
- Load Capacity: 15kg
- Adjustment Range: 190-204mm (mounting hole center distance)
- Mounting: Surface mount, 2×Φ3mm holes, screw/rivet fixing
- Approx. Dimensions: Handle body length 156mm, width 25.5mm, thickness 9mm
- Compliance: ISO 9001 / REACH / RoHS (on request)
- Note: Drawings for reference. NRH manufacturing since 1996. OEM/ODM welcome.
Why Case Makers Choose NRH Rubber Strap Handles
The NRH 4503-193 is designed for multi‑size, lightweight portable cases. Its adjustable length lets one handle serve multiple product lines, while the flexible rubber strap offers comfort and durability. If you need a lightweight, foldable, adjustable carry handle, this is the proven solution.
| Brand | NRH |
|---|---|
| SKU | 4503-193-PVC-BK |
| Weight | 61 g |
| Dimensions | 190x25.5x9 mm |
| Material | Polyvinyl Chloride（PVC） |
| Load Capacity | 15 kg |
| Country of Origin | China |
| Certifications | CE, ISO9001, UL, SGS, RoHS |
| Minimum Order Quantity | 1 |
| Production Lead Time | 7-30 days |
| Stock Status | In Stock |
