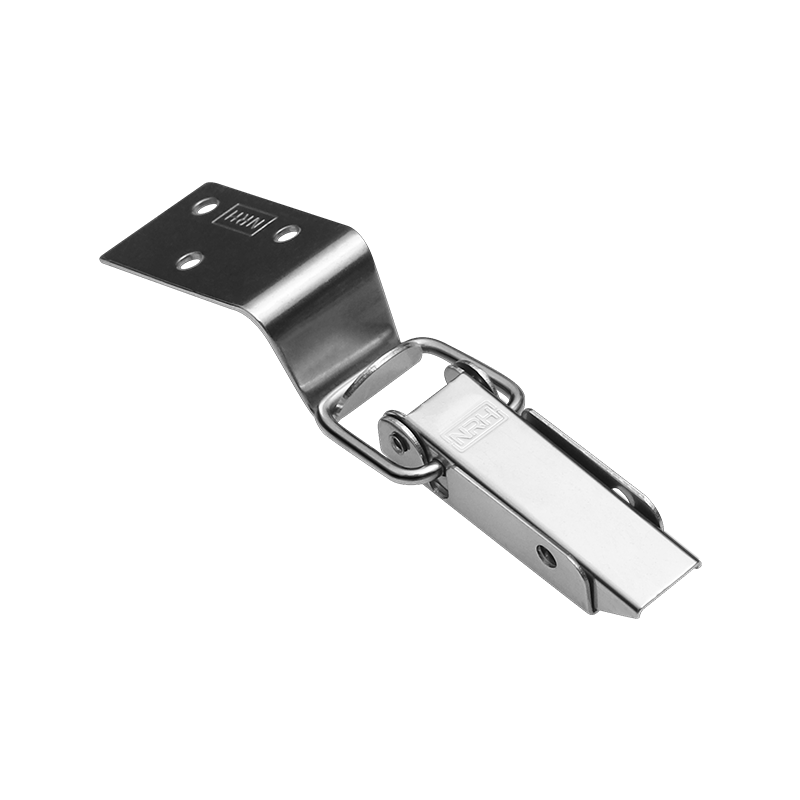

Latch 5404-75 3D Model
Interactive 3D model of 5404-75 latches from NRH. Rotate, zoom, and inspect every detail before requesting a quote.
- Model Number5404-75
- CategoryLatches
- Material304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC)
- Surface FinishZinc Plated, Vibratory Polished
- ColorColor Zinc Plated, Natural Stainless
- Working Load20kg
Product Overview
The 5404-75 medium-duty latch delivers reliable, consistent latching performance for a wide range of industrial enclosures and equipment. Engineered for everyday use across multiple industries, it provides secure closure with straightforward operation.
Design & Construction
The 5404-75 latch features a robust draw-latch mechanism designed for dependable closure on standard industrial enclosures. The lever-operated toggle mechanism pulls the latch closed with progressive force, ensuring gasket compression and a secure seal. The over-center lock position prevents accidental release from vibration, and the substantial base plate provides solid mounting for reliable long-term performance.
Materials & Finish
Constructed from durable 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC), the 5404-75 latch offers exceptional resistance to corrosion and oxidation, making it well-suited for outdoor, marine, and food industry applications. The stainless steel material maintains its appearance and structural properties even under continuous exposure to moisture, salt air, and cleaning chemicals, ensuring long-term reliable performance.
Performance & Specifications
Engineered for dependable industrial use, the 5404-75 latch provides secure closure with good mechanical advantage for drawing panels tightly together. The latch mechanism is designed for smooth, positive operation with a clear engagement point that gives operators confidence the latch is properly secured. Rated working load: 20kg. Performance ratings assume proper installation and use within recommended parameters.
Typical Applications
Found in manufacturing facilities, data centers, food processing plants, pharmaceutical equipment, and commercial building systems, the 5404-75 latch provides reliable closure for a wide variety of equipment. It is frequently specified for use on industrial control panels, automation equipment enclosures, generator set access doors, and utility cabinets where secure, accessible closure is essential for equipment protection and operator safety.
Installation & Usage
Proper installation of the 5404-75 latch is essential for dependable performance and long service life. Begin by marking the latch location on the door, taking into account the required clearance and ergonomic access height. Drill mounting holes and install the latch body securely using appropriate fasteners. Next, transfer the catch position to the frame using a marking tool or by carefully measuring the alignment. Install the catch or keeper plate, leaving room for initial adjustment. Close the latch and check engagement quality and pull-up force. Adjust the catch position as needed to achieve proper latching with adequate gasket compression (if applicable) and a positive over-center feel. Once adjusted, tighten all fasteners securely. Test the latch through multiple cycles to confirm consistent operation.
Why Choose NRH
With over 25 years of experience in industrial hardware manufacturing, NRH has established itself as a trusted supplier for OEMs, distributors, and engineering teams worldwide. Our commitment to quality, consistent performance, and responsive customer support sets us apart in the global hardware market.
Every Latch in our 3D model library is produced under strict quality control standards. We offer comprehensive customization services, including custom sizes, modified finishes, and OEM branding to meet your specific project requirements. Contact our engineering team for technical support or custom solutions.
Specifications
| Model Number | 5404-75 |
|---|---|
| Product Category | Latches |
| Material | 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) |
| Surface Finish | Zinc Plated, Vibratory Polished |
| Color | Color Zinc Plated, Natural Stainless |
| Working Load | 20kg |
| Brand | NRH |
Frequently Asked Questions
The 5404-75 latch has a working load capacity of 20kg. This rating represents the maximum recommended load for normal operating conditions. Actual performance may vary based on installation method, load distribution, and environmental factors.
The 5404-75 is constructed from 304 Stainless Steel (SUS304), Cold-Rolled Carbon Steel (SPCC) with a Zinc Plated, Vibratory Polished finish. This material is selected for its durability, excellent corrosion resistance, and suitability for hygienic and outdoor environments.
The 5404-75 latch is suitable for a wide range of Medium-duty industrial applications, including industrial cabinets, equipment enclosures, and toolboxes. Its medium-duty rating makes it ideal for everyday industrial use where consistent, dependable performance is required. For specific application questions, contact our technical support team.
Yes, NRH offers comprehensive customization services for the 5404-75, including custom sizes, modified finishes, special materials, and OEM branding options. We work closely with OEMs, engineering teams, and distributors to develop solutions tailored to specific application requirements. Contact our sales team to discuss your customization needs.
Installation of the 5404-75 is straightforward using standard fasteners appropriate for your mounting surface. Ensure proper alignment before final tightening, and follow recommended torque specifications for the fastener size used. For detailed installation guidance or technical support, contact our engineering team who can provide specific recommendations based on your application and mounting materials.
