NRH 5607-104-KS Adjustable Toggle Latch | Heavy Duty Draw Catch for Industrial Cases

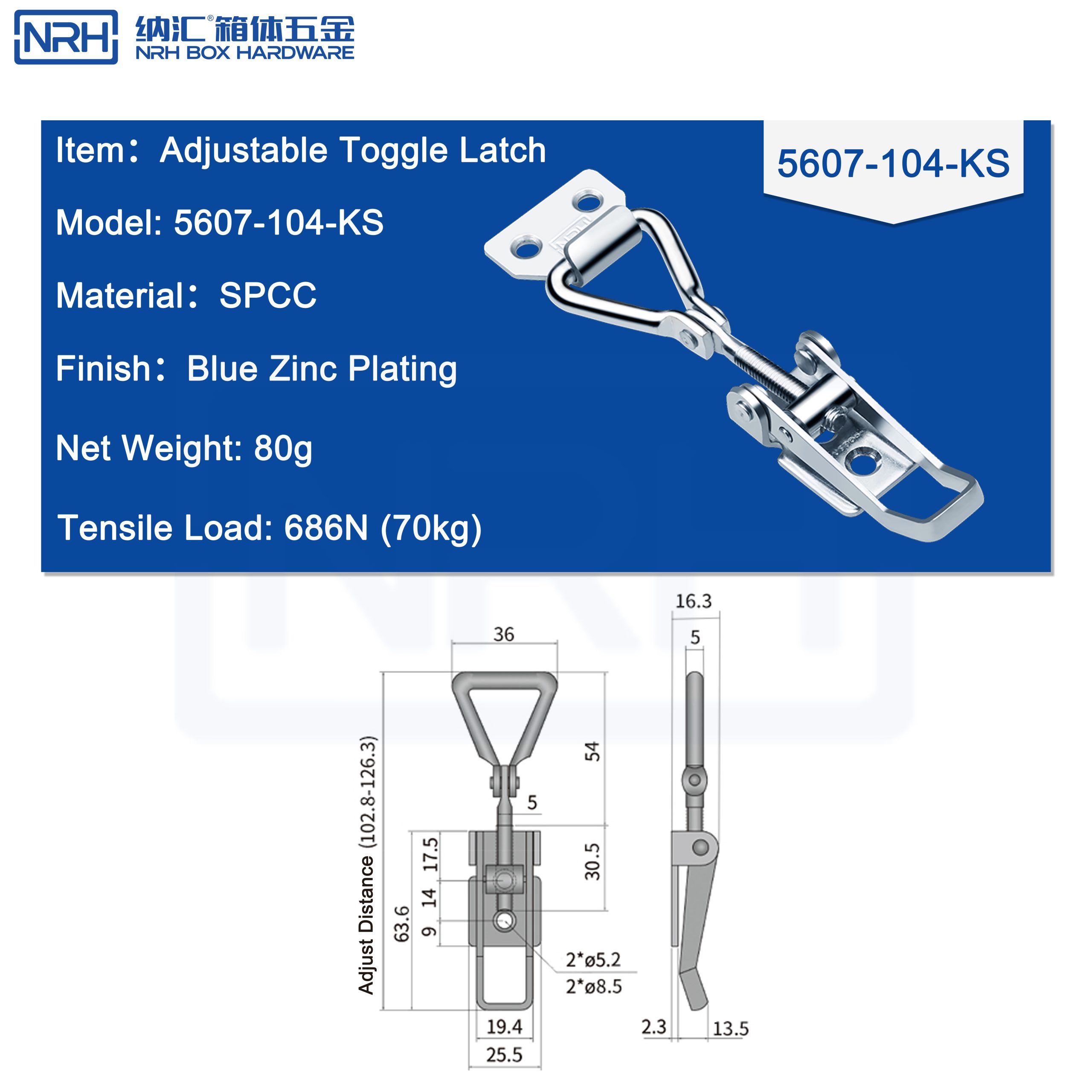

The NRH 5607-104-KS is a professional-grade Adjustable Toggle Latch​ engineered for demanding industrial and security applications. Crafted from durable SPCC steel​ and featuring a distinctive Blue Zinc Plating​ finish, this latch combines high corrosion resistance with a robust mechanical design. Its key feature is a fine-tuning screw mechanism​ that allows the effective length to be precisely adjusted between 102.8mm and 126.3mm, ensuring a perfect, rattle-free seal on enclosures with varying gaps. With a substantial net weight of 80g​ and an exceptional tensile load capacity of 686N (70kg), it delivers reliable performance for heavy-duty fastening. As a product of NRH Box Hardware, a specialist manufacturer since 1996, it is backed by comprehensive certifications including ISO 9001:2000, SGS, REACH, RoHS, and SVHC.

Primary Applications:​

This versatile heavy-duty latch is designed for securing a wide range of demanding enclosures:

How It Works (Operating Principle):​

This latch functions as a precision-adjustable clamping mechanism​ specifically engineered to securely fasten two panels together. The base plate (with 2x ∅5.2mm​ and 2x ∅8.5mm​ mounting holes) is fixed to one surface. The lever assembly, featuring a prominent D-ring and an integrated adjustment screw, engages a strike plate on the opposing surface. To adjust, simply rotate the screw to extend or retract the hook, setting the exact clamping distance within the 102.8-126.3mm​ range to accommodate panel tolerances or gasket compression. To secure, push the lever down—the spring-assisted, over-center toggle action pulls the two objects tightly together, creating a vibration-resistant seal.
