NRH R4201-140 Heavy Duty Spring Handle | 40kg Load SPCC Chrome Plated

Send Inquiry

Functional characteristics

R4201-140, spring handle, heavy duty handle, SPCC chrome handle, 40kg load, server rack handle, toolbox handle, auto-return handle, industrial hardware

The NRH R4201-140 is a robust heavy-duty spring handle designed for maximum strength and daily reliability. As detailed in the specifications, it is manufactured from durable SPCC steel with a bright and protective Chrome Plating finish. The handle features a comfortable black rubber grip for a secure, non-slip hold. Its high-tensile spring mechanism ensures smooth extension for carrying and provides automatic retraction to a flush, space-saving position when released. Weighing 190g with an impressive 392N (40kg) tensile load, it is engineered for the most demanding industrial and transport applications. Proudly manufactured by NRH Box Hardware with a heritage since 1996, this product complies with ISO 9001:2008, SGS, REACH, SVHC, and RoHS standards. OEM/ODM services are available.

Primary Applications

This handle is built for securing and providing reliable access to heavy enclosures:

Server Racks & Data Cabinets: Heavy doors on server racks, network cabinets, and communication enclosures.
Industrial Toolboxes & Machinery: Large rolling tool chests, welding equipment cases, and heavy-duty service kits.
Professional Flight & Road Cases: Extra-large ATA cases and transit boxes for broadcasting and touring equipment.
Industrial Control Panels: Large access doors on control and power distribution panels.

How It Works (Operating Principle)

The handle operates on a powerful spring-loaded mechanism. To use, pull the rubber-gripped handle upward; it extends smoothly to a stable, locked position for carrying. To store, simply release it. The internal spring automatically and firmly retracts the handle, folding it completely flat against the mounting surface for a safe, streamlined profile.

Features & Specifications

High Load Capacity: Rated for a 392N (40kg) tensile load, suitable for lifting heavy lids and cases.
Durable SPCC Construction: SPCC steel with Chrome Plating provides excellent strength and corrosion resistance.
Ergonomic Rubber Grip: Ensures operator comfort and a secure, non-slip hold.
Automatic Spring Return: Retracts flush automatically when released, maximizing space and safety.
Secure Mounting: Features 5x Φ5mm mounting holes with a 85.5mm hole spacing for stable installation.

Technical Specifications

Item	Specification
Brand	NRH Box Hardware
Model Number	R4201-140
Product Name	Spring Handle
Primary Material	SPCC Steel
Surface Finish	Chrome Plating
Grip Material	Rubber (Black)
Product Weight	190g
Tensile Load	392N (40kg)

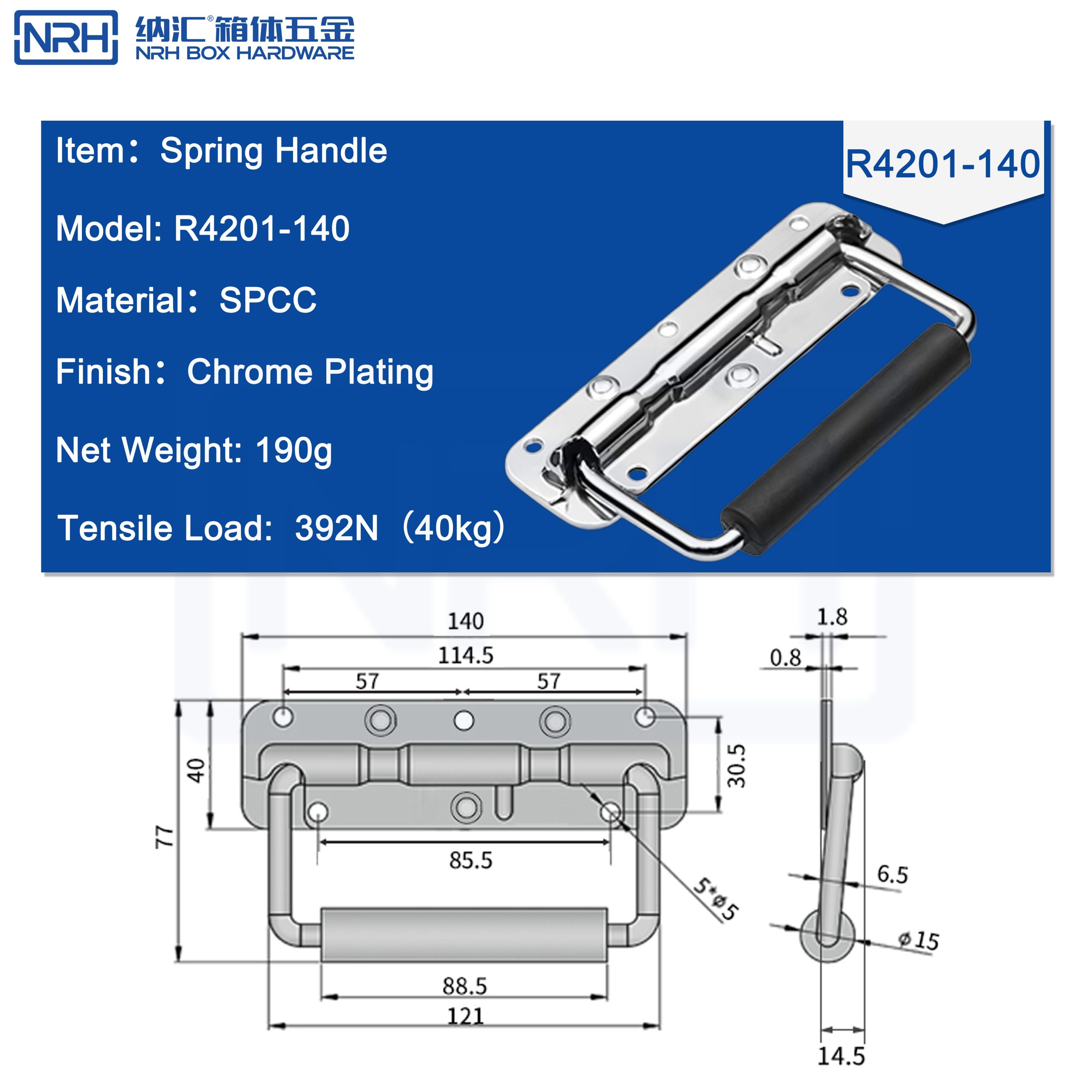

Key Dimensions	Overall Length: 140mm, Mounting Base Width: 40mm, Hole Spacing: 85.5mm, Mounting Holes: 5 x Φ5mm, Material Thickness: 0.8mm. (Other dimensions as per drawing: 114.5, 57, 6.5, 15, 88.5, 121, 14.5)
Compliance	ISO 9001:2008, SGS, REACH, SVHC, RoHS
Additional Info	Manufacturer Since 1996. OEM/ODM Services Available.
