SUS304 Stainless Steel Spring Pin Latch with Stay-Open Feature | NRH R7956-10-120

Type:
Warning: Array to string conversion in /usr/local/lighthouse/softwares/wordpress/wp-includes/formatting.php on line 1128
Array

Send Inquiry

Functional characteristics

SUS304 spring latch, stainless steel stay open latch, maintenance latch, server rack latch, 10mm plunger, industrial cabinet lock, hold open detent, NRH R7956-10-120, vibration polished finish

The NRH R7956-10-120 is a premium-grade, stainless steel spring pin latch engineered for demanding maintenance and access applications. Manufactured from corrosion-resistant SUS304 stainless steel with a clean Vibratory Finishing, it is built for longevity in harsh or sanitary environments. Its key innovation is a precision machined detent groove on the 10mm plunger rod, enabling a reliable “stay-open” function. This allows doors to be securely locked in the open position for hands-free work, and closed with a simple push for automatic, spring-powered locking. Weighing 133g with a 120mm overall length, it combines robust construction with intelligent, labor-saving design. Proudly made by NRH Box Hardware since 1996, complying with ISO 9001:2008, SGS, REACH, and SVHC standards. OEM/ODM services are available.

Primary Applications

Ideal for applications requiring secure, temporary access and corrosion resistance:

Data Center & IT Maintenance: Perfect for holding open server rack doors, network cabinet panels, and PDU enclosures during hardware installation or cable management.
Industrial Equipment Servicing: Keeps control cabinet doors, machinery guard panels, and electrical enclosures safely open for troubleshooting and tool access.
Hygienic & Washdown Areas: Suitable for food processing equipment doors, pharmaceutical cabinets, and laboratory furniture where stainless steel is required.
Marine & Outdoor Enclosures: Provides reliable latching for communication cabinets, outdoor instrumentation boxes, and marine equipment hatches.

How It Works: The Stay-Open Advantage

This latch features an intuitive two-stage operation for maximum efficiency.

To Lock & Hold Open: Open the door and fully pull the blue handle. The plunger will retract and audibly click into the detent groove, locking the latch in the open position. The door remains securely open, freeing both hands.
To Close & Auto-Lock: When finished, a light push on the door or handle releases the plunger from the detent. The internal spring instantly drives the plunger forward, automatically engaging the strike plate and locking the door.

Features & Specifications

Secure Stay-Open Detent: The positive lock-open feature is essential for safe, efficient maintenance, allowing unimpeded access to enclosure internals.
Automatic & Reliable Locking: Ensures the door is securely fastened every time with a fail-safe spring return.
Corrosion-Resistant SUS304: Grade 304 stainless steel construction ensures excellent durability and resistance to rust, chemicals, and moisture.
Robust 10mm Plunger Rod: The thick 10mm diameter provides high shear strength and resistance to bending for long-term reliability.
Ergonomic Blue Handle: The overmolded blue handle offers a non-slip grip and clear visual status indication.

Technical Specifications

Item	Specification
Brand	NRH Box Hardware
Model Number	R7956-10-120
Product Name	Spring Pin Latch
Primary Material	SUS304 Stainless Steel
Surface Finish	Vibratory Finishing
Product Weight	133g
Insert Rod Diameter	10mm (with detent groove)
Overall Length	120mm

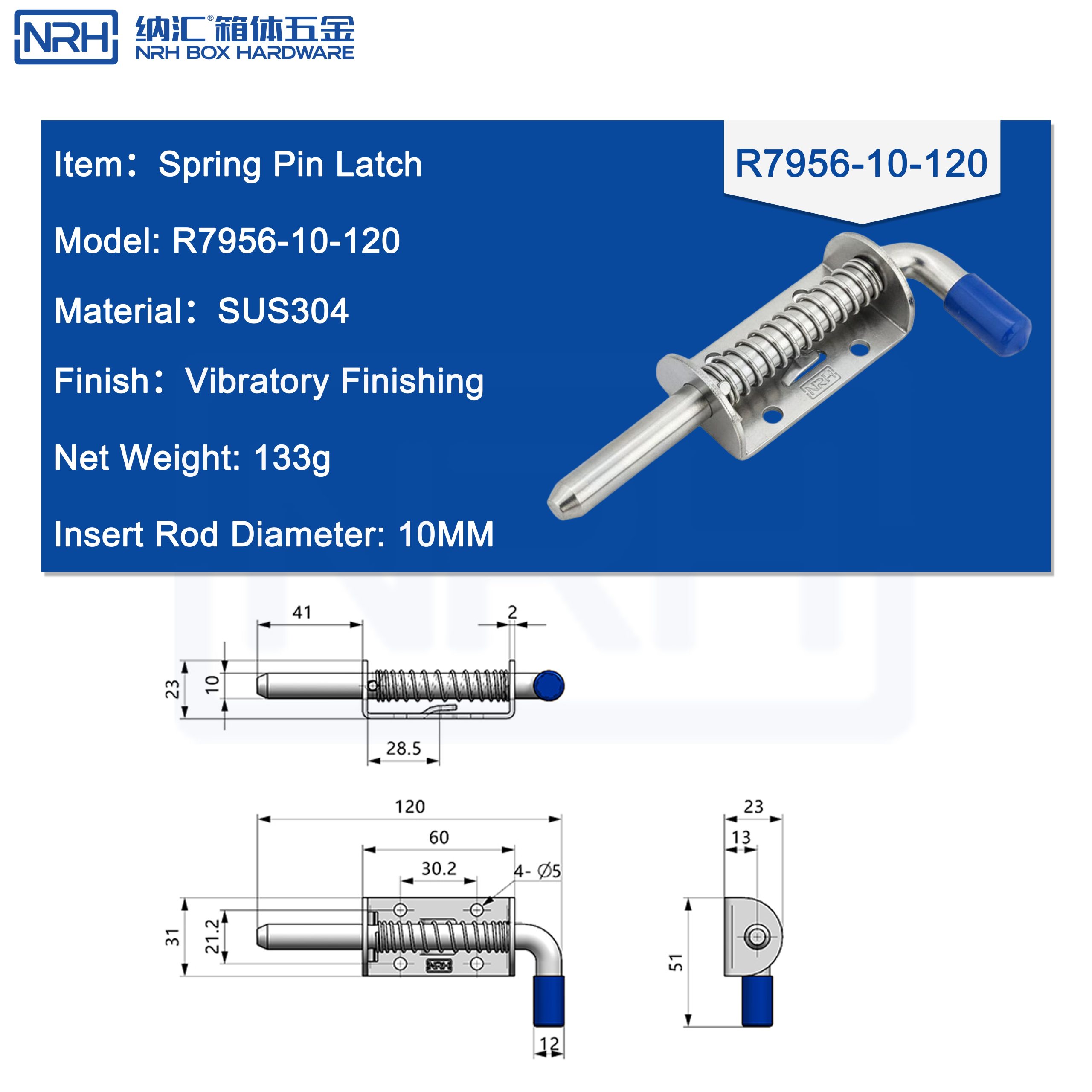

Key Dimension (Drawing)	28.5, 41, 60, 30.2, 4x Ø5mm mounting holes
Operation	Manual Pull/Push with Stay-Open Detent & Auto-Lock
Compliance	ISO 9001:2008, SGS, REACH, SVHC
Additional Info	Manufacturer Since 1996. OEM/ODM Services Available.
