NRH R7956-10-120 Heavy Duty Spring Pin Latch | SPCC Blue Zinc with L-Handle

Functional characteristics

NRH R7956-10-128, spring pin latch, heavy duty latch, 10mm pin latch, industrial cabinet lock, toolbox latch, blue handle latch, SPCC blue zinc, manual lock, spring loaded pin

The NRH R7956-10-120 is a heavy-duty spring pin latch designed for secure manual fastening. As per specifications, it is constructed from SPCC steel and finished with Blue Zinc Plating for corrosion resistance. Its key features include a 10mm diameter steel insert rod and an overall length of 120mm. The L-shaped handle with a blue plastic sleeve ensures a firm grip. Operation is intuitive: pull to unlock, release for automatic spring locking. Weighing 131g, it is built for reliable performance. Manufactured by NRH Box Hardware since 1996 under ISO 9001:2000 standards. OEM/ODM services are available.

Primary Applications

Industrial cabinets, server racks, and control panel doors.
Large industrial toolboxes and equipment cases.
Machine guards and access panels.
Transport cases and heavy-duty storage.

How It Works (Operating Principle)

Unlock: Pull the blue L-handle outward to retract the pin.
Lock: Release the handle. The spring automatically extends the pin to lock.

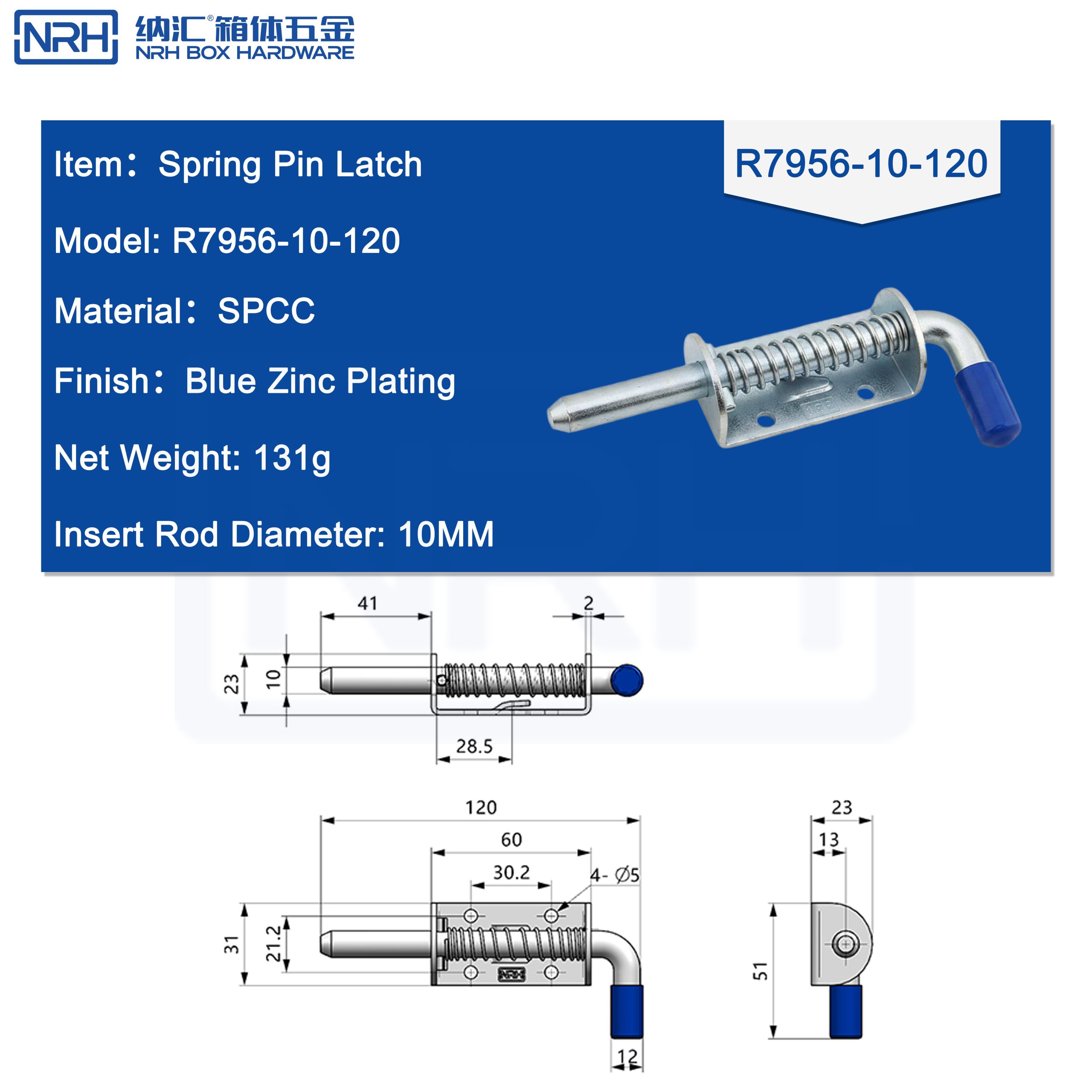

Features & Specifications

120mm Overall Length: Provides extended reach for various applications.
10mm Thick Insert Rod: Offers high shear strength and durability.
Ergonomic Blue L-Handle: For comfortable, non-slip operation.
Automatic Spring Return: Ensures positive locking.
Secure 4-Point Mounting: Base with 4x Ø5mm holes (spacing: 31mm & 21.2mm) for stable installation.

Technical Specifications

Item	Specification
Model	R7956-10-120
Material	SPCC Steel
Finish	Blue Zinc Plating
Weight	131g
Rod Diameter	10mm
Overall Length	120mm
Mounting Holes	4 x Ø5mm
