The NRH R7956-10-1-135 is a heavy-duty spring pin latch designed for secure, manual fastening in demanding industrial applications. As detailed in the specification sheet, it is constructed from durable SPCC steel and finished with a protective Blue Zinc Plating for excellent corrosion resistance. Its core feature is a substantial 10mm diameter insert rod, supported by a high-tension coil spring, ensuring reliable shear strength and straightforward operation: pull the rod to retract, release for automatic spring locking. Weighing 135g with an extended total length of 135mm, it is built for robust performance where a long-reach, secure latch is required. Proudly manufactured by NRH Box Hardware, a specialist since 1996, this product is produced under an ISO 9001:2000 certified quality management system and complies with SGS, REACH, SVHC, and RoHS standards. OEM/ODM services are available for custom integration.
Primary Applications
This long-reach latch is ideal for securing larger or deeper enclosures:
-
Industrial Toolboxes & Machine Guards: For large tool chests, welding equipment cases, and machinery with thick access panels.
-
Electrical & Server Enclosures: As a manual fastener for doors on deep control cabinets, server racks, and industrial panels.
-
Transport & Logistics Cases: Provides secure closures for shipping containers and heavy equipment transit boxes.
-
Agricultural & Construction Equipment: Durable locking for vehicle-mounted toolboxes and rugged field service enclosures.
How It Works (Operating Principle)
The latch operates on a reliable spring-loaded principle. The internal compression spring holds the 10mm insert rod firmly in the extended (locked) position.
-
To Unlock: Grasp the blue plastic sleeve on the L-handle and pull firmly outward. This compresses the spring and fully retracts the long rod.
-
To Lock: Align the door or panel and simply release the handle. The spring automatically drives the rod forward over its 135mm length to engage the strike point, securing the assembly with a positive action.
Features & Specifications
-
Long 135mm Reach: The extended 135mm length is designed to securely engage doors or panels with significant depth or overlap.
-
Substantial 10mm Insert Rod: The 10mm diameter provides enhanced strength and shear resistance for demanding applications.
-
Ergonomic L-Handle with Grip: Features an L-shaped handle with a blue plastic sleeve for a comfortable, non-slip grip during operation.
-
Automatic & Reliable Locking: A high-tension spring ensures consistent, automatic locking upon release.
-
Durable SPCC with Blue Zinc: SPCC steel construction ensures strength, while Blue Zinc Plating provides effective corrosion protection.
-

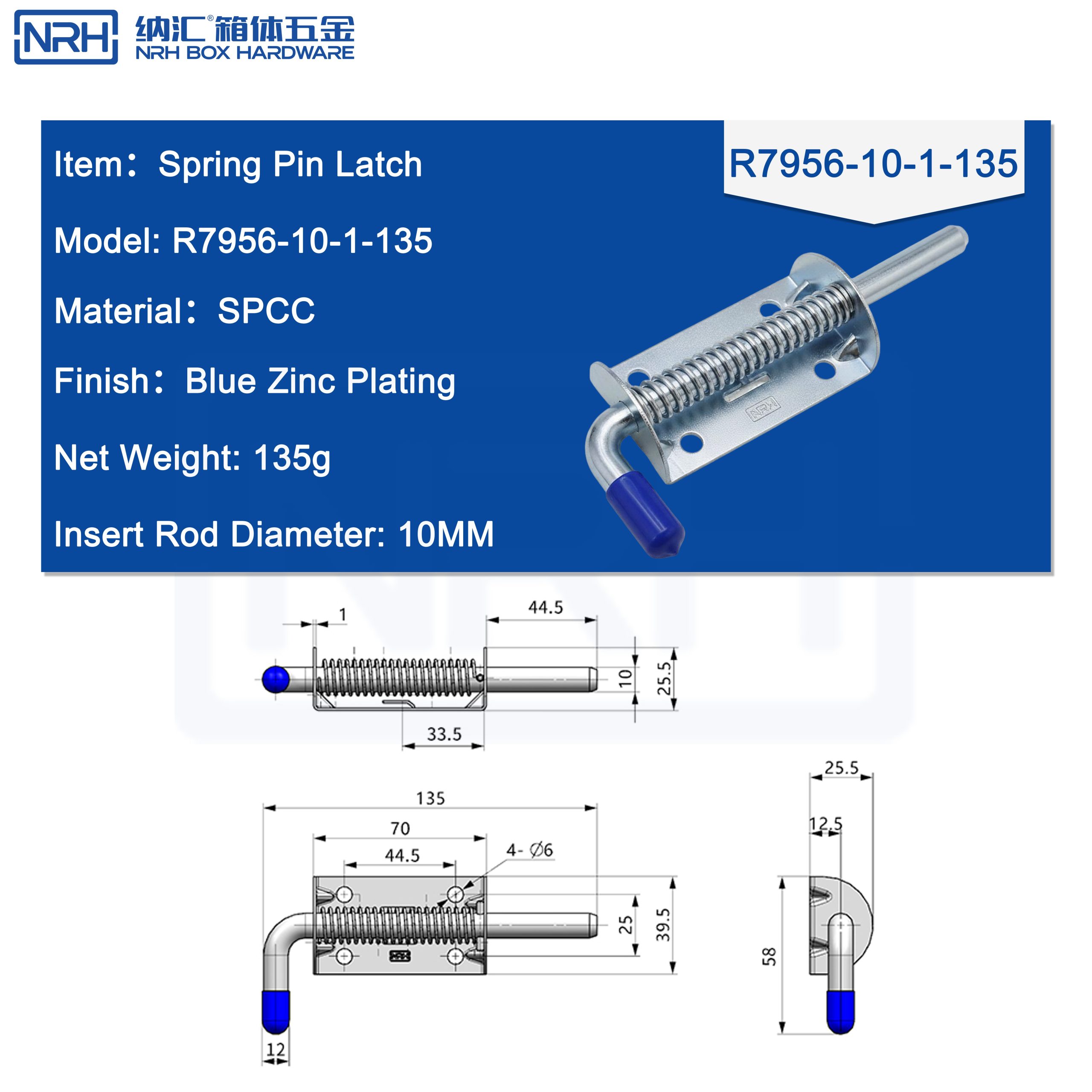

Secure 4-Point Mounting: The reinforced rectangular base plate features 4 mounting holes (as per drawing dimensions) for a extremely stable and rattle-free installation.
Technical Specifications
|
Item
|
Specification
|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
R7956-10-1-135
|
|
Product Name
|
Spring Pin Latch
|
|
Primary Material
|
SPCC Steel
|
|
Surface Finish
|
Blue Zinc Plating
|
|
Product Weight
|
135g
|
|
Insert Rod Diameter
|
10mm
|
|
Operation Type
|
Manual Pull-Push (Spring Return)
|
|
Key Dimensions
|
Total Length: 135mm, Mounting Hole Pattern: 4 Holes .
|
|
Compliance
|
ISO 9001:2000, SGS, REACH, SVHC, RoHS
|
|
Additional Info
|
Manufacturer Since 1996. OEM/ODM Services Available.
|
