NRH R7956-6-100 Spring Pin Latch | 6mm SPCC Blue Zinc for Cabinets & Cases

Spring Pin Latch Product Overview

R7956-6-100, spring pin latch, SPCC latch, blue zinc, 6mm plunger, cabinet latch, toolbox lock, manual latch, industrial hardware, NRH

The NRH R7956-6-100 is a reliable and compact spring pin latch, designed for secure manual fastening of doors, lids, and panels. It is constructed from durable SPCC steel and features a Blue Zinc Plating finish for corrosion protection. The design includes an L-shaped pull handle, a compression spring, and a sturdy base plate. Operation is intuitive: pull the handle to retract the pin; release it for automatic spring locking. Weighing only 52g with an overall length of 94mm, it is a practical solution for light to medium-duty applications. Manufactured by NRH Box Hardware with expertise since 1996.

Primary Applications

Toolboxes, instrument cases, and portable kits.
Server racks, network cabinets, and control panels.
Electrical enclosures and junction boxes.
General storage cabinets and access panels.

Features & Specifications

Simple manual pull-push operation with automatic return.
Durable SPCC construction with blue zinc plating.
Compact and lightweight design (52g).
6mm diameter insert rod for reliable engagement.
Secure 4-point mounting with 4x Ø5mm holes.

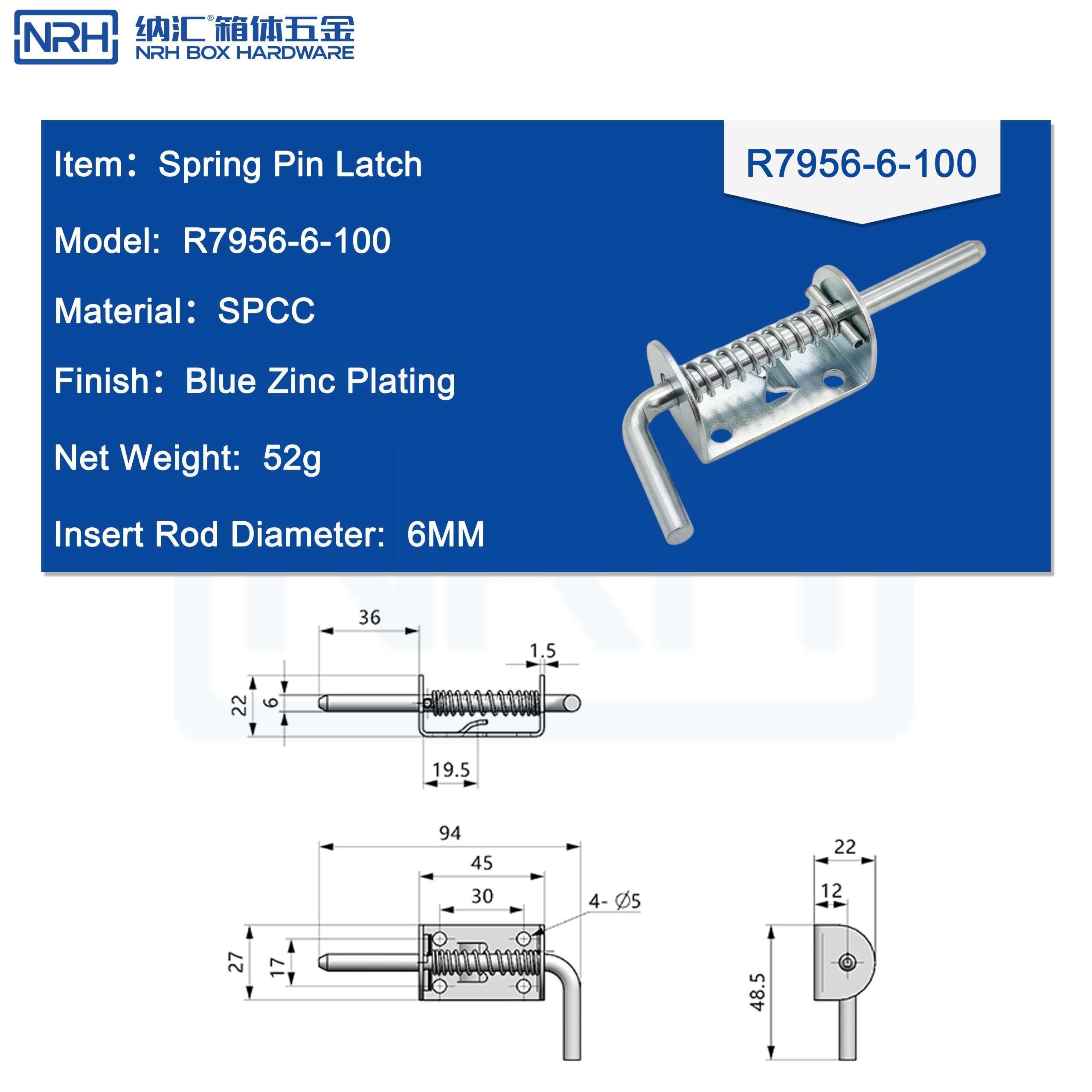

Technical Specifications

Item	Specification
Model	R7956-6-100
Material	SPCC Steel
Finish	Blue Zinc Plating
Weight	52g
Rod Diameter	6mm
Overall Length	94mm
Mounting Holes	4 x Ø5mm
