NRH 7954-60R-2 Spring Pin Latch | 85mm SPCC Blue Zinc Cabinet Lock

Spring Pin Latch Product Overview

NRH 7954-60R-2 Spring Pin Latch | 85mm SPCC Blue Zinc Cabinet Lock

The NRH 7954-60R-2 is a reliable and compact spring pin latch, designed for secure, tool-free fastening of doors, lids, and panels. As detailed in the specification sheet, it is constructed from durable SPCC steel and features a Blue Zinc Plating finish for corrosion resistance. The latch integrates a simple spring-loaded plunger mechanism, offering intuitive manual operation: pull to retract the pin, release for automatic spring locking. Weighing only 29g with a total length of 85mm, it provides a lightweight and space-efficient latching solution. Proudly manufactured by NRH Box Hardware with a legacy since 1996, this product is produced under an ISO 9001:2008 certified quality management system and complies with SGS, REACH, and SVHC standards. OEM/ODM services are available.

Primary Applications

This versatile latch is suitable for providing a secure closure on a variety of enclosures:

Toolboxes & Equipment Cases: For securing lids on tool chests, instrument cases, and portable kits.
Electrical & Industrial Cabinets: As a manual fastener for doors on control cabinets, server racks, and modular panels.
Machine Guards & Access Panels: For use as a quick-release mechanism on equipment access doors and safety covers.
Storage & Furniture: Provides simple locking for cabinets, lockers, and storage units.

How It Works (Operating Principle)

The latch operates on a straightforward spring-loaded principle. An internal compression spring holds the plunger pin in the extended (locked) position.

To Unlock: Manually pull the plunger head outward. This compresses the spring and retracts the pin, clearing the strike plate.
To Lock: Align the door and release the plunger. The spring automatically drives the pin forward to engage the strike point, securing the door.

Features & Specifications

Simple Manual Operation: Easy pull-to-open, release-to-lock action for quick, tool-free access.
Automatic Spring Return: Ensures secure, automatic locking upon release.
Durable SPCC Construction: SPCC steel provides strength, protected by Blue Zinc Plating against corrosion.
Compact & Lightweight Design: With a net weight of 29g and a total length of 85mm, it is a space-saving component.
Easy & Secure Mounting: Designed with a base plate featuring 2x Ø5mm mounting holes on 60mm centers for straightforward installation.

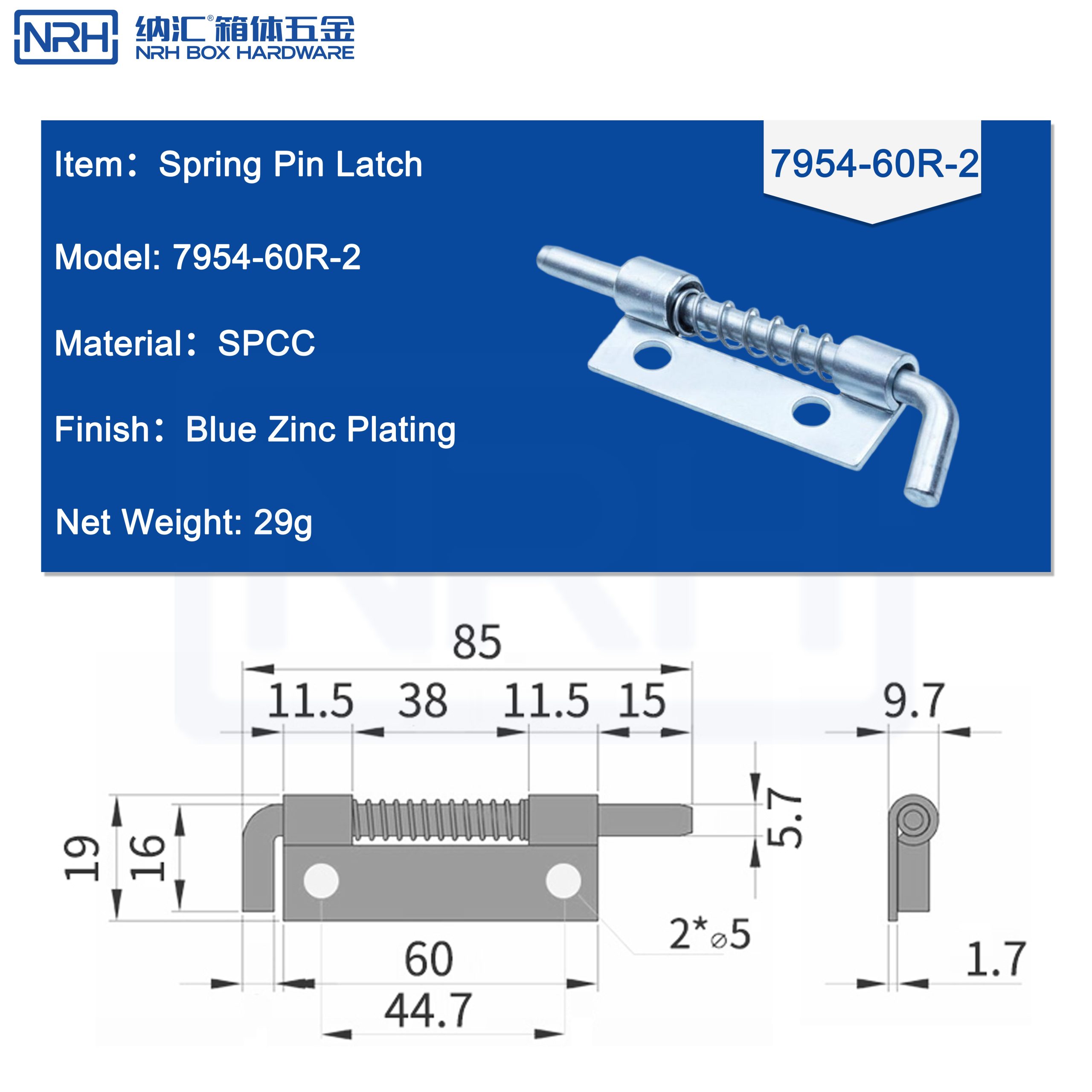

Technical Specifications

Item	Specification
Brand	NRH Box Hardware
Model Number	7954-60R-2
Product Name	Spring Pin Latch
Primary Material	SPCC Steel
Surface Finish	Blue Zinc Plating
Product Weight	29g
Operation Type	Manual (Spring-Return)
Key Dimensions	Total Length: 85mm, Mounting Holes: 2 x Ø5mm, Material Thickness: 1.7mm.
Compliance	ISO 9001:2008, SGS, REACH, SVHC
Additional Info	Manufacturer Since 1996. OEM/ODM Services Available.
