NRH 7954-60R-1 Spring Pin Latch | SPCC Blue Zinc Right-Hand Opening Latch

Spring Pin Latch Product Overview

NRH 7954-60R-1, spring pin latch, right-hand latch, L-handle latch, SPCC latch, blue zinc plated, cabinet latch, toolbox lock, manual lock, industrial hardware

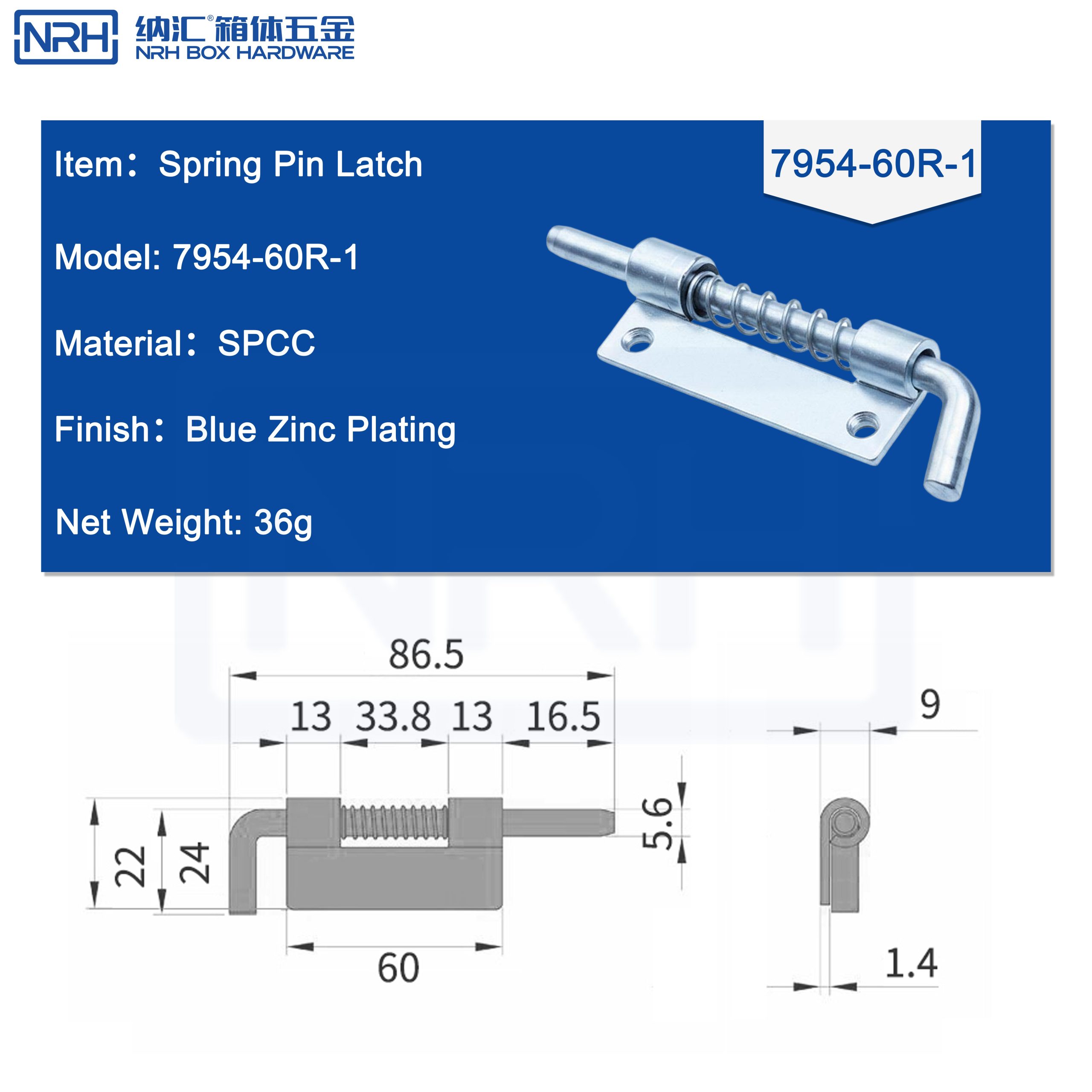

The NRH 7954-60R-1 is a reliable and functional spring pin latch, designed for straightforward manual latching of doors, lids, and panels. As illustrated in the provided specification sheet, it is constructed from durable SPCC steel and finished with Blue Zinc Plating for corrosion resistance. The design incorporates a practical L-shaped handle connected to a spring-loaded plunger mechanism, offering tool-free operation: pull the handle to retract the pin, release to engage automatic spring locking. Notably, the “R” in the model number typically indicates a configuration optimized for right-hand opening doors (when viewed from the front). Weighing 36g and built for consistent performance, it is a dependable choice for various enclosures. This product is manufactured by NRH Box Hardware, a specialist since 1996, under an ISO 9001:2000 certified quality system and complies with SGS, REACH, SVHC, and RoHS standards. OEM/ODM services are available for custom applications.

Primary Applications

This latch is suitable for providing a secure closure on a range of applications, particularly where right-hand opening is required:

Toolboxes & Equipment Cases: For securing lids on tool chests, instrument cases, and portable kits.
Electrical & Industrial Enclosures: As a manual fastener for right-opening doors on control cabinets, server racks, and modular panels.
Machine Guards & Access Panels: For use as a quick-release on equipment access doors and safety covers.
Storage & Furniture: Provides simple locking for cabinets, lockers, and storage units.

How It Works (Operating Principle)

The latch operates on a simple spring-loaded principle. An internal compression spring holds the plunger pin in the extended (locked) position.

To Unlock: Pull the L-shaped handle outward. This compresses the spring and retracts the pin, clearing the strike plate.
To Lock: Align the door and release the handle. The spring automatically drives the pin forward to engage the strike point, securing the door. The latch is designed so that the door swings open to the right (away from the latch body) when the handle is pulled.

Features & Specifications

Manual L-Handle Operation: The L-shaped handle provides a positive grip for easy one-handed pull-to-open action.
Right-Hand Opening Design: Configured for optimal function and ergonomics on doors that open to the right.
Automatic Spring Return: Ensures secure, automatic locking upon release.
Durable SPCC Construction: SPCC steel offers strength, protected by Blue Zinc Plating against corrosion.
Compact & Functional: Designed with a focus on reliable operation. Key dimension includes a total length of 86.5mm.

Technical Specifications

Item	Specification
Brand	NRH Box Hardware
Model Number	7954-60R-1
Product Name	Spring Pin Latch
Primary Material	SPCC Steel
Surface Finish	Blue Zinc Plating
Product Weight	36g
Operation Type	Manual (Spring-Return)
Key Dimension	Total Length: 86.5mm
Compliance	ISO 9001:2000, SGS, REACH, SVHC, RoHS
Additional Info	Manufacturer Since 1996. OEM/ODM Services Available. The “R” suffix typically indicates a configuration for right-hand opening doors.
