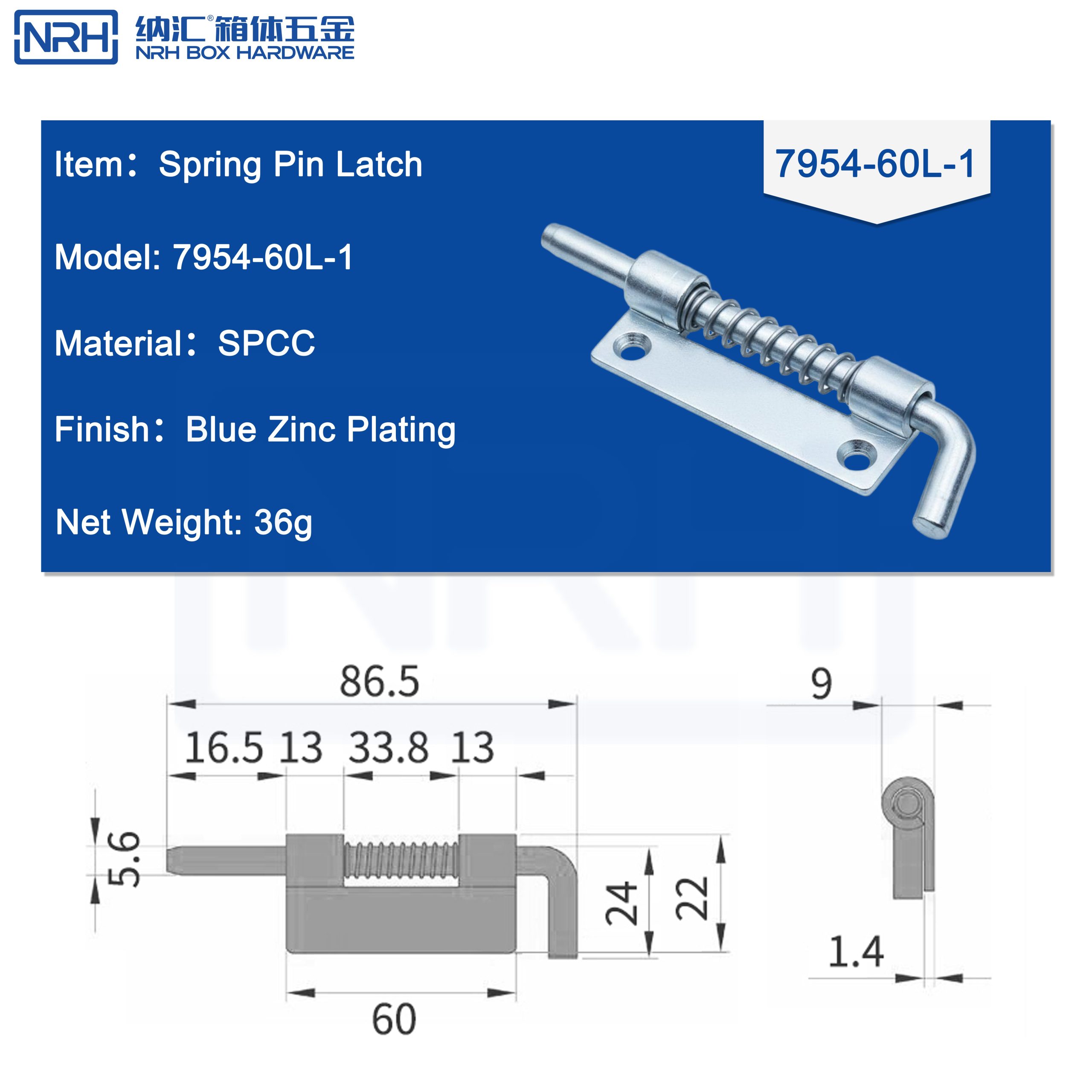

The NRH 7954-60L-1 is a substantial and reliable heavy-duty spring pin latch, designed for demanding applications requiring a secure, manual fastening solution. As detailed in the product drawings, it is constructed from durable SPCC steel and protected with a Blue Zinc Plating finish for excellent corrosion resistance. Characterized by its prominent L-shaped pull handle and a long, sturdy plunger pin, this latch offers positive, tool-free operation. A firm pull on the handle retracts the pin; releasing it engages automatic, spring-powered locking with authority. Weighing a solid 36g with an overall length of 60mm, it is built for performance in industrial environments. Proudly manufactured by NRH Box Hardware with a legacy since 1996, this product is produced under an ISO 9001:2000 certified quality management system and complies with SGS, REACH, RoHS, and SVHC standards. OEM/ODM services are available for integration into your specific designs.
Primary Applications
This robust latch is engineered for securing access points on heavy-duty enclosures:
-
Industrial Toolboxes & Machine Guards: Primary latches for large tool chests, welding equipment cases, heavy machinery access panels, and safety guards.
-
Electrical & Server Enclosures: Reliable, high-cycle fasteners for industrial control cabinet doors, large server rack access panels, and power distribution units.
-
Transport & Logistics Cases: Secure closures for ATA flight cases, heavy-duty shipping containers, and equipment transit boxes.
-
Agricultural & Construction Equipment: Durable locking for vehicle-mounted toolboxes, field service enclosures, and equipment hatches.
How It Works (Operating Principle)
The latch employs a straightforward, heavy-duty spring mechanism designed for a confident user feel and long service life. The internal compression spring holds the Ø5.6mm plunger pin firmly in the extended (locked) position.
-
To Unlock: Grasp the large L-shaped handle and pull firmly outward. This action cleanly compresses the spring and fully retracts the pin, providing clear physical feedback.
-
To Lock: Align the door or panel and simply release the handle. The high-tension spring immediately and forcefully drives the pin forward into the strike plate or hole, resulting in a secure, audible lock. The design is typically configured for doors that swing open to the left (when viewed from the front), as indicated by the “L” in the model number. The “R” variant is for right-opening doors.
Features & Specifications
-
Positive L-Handle Operation: The oversized L-shaped handle provides excellent leverage and a sure grip for easy, one-handed operation, even with gloves.
-
Heavy-Duty Spring & Plunger: Features a robust Ø5.6mm pin and a high-tension spring for powerful, reliable locking action suitable for frequent industrial use.
-
Durable SPCC with Blue Zinc: SPCC steel construction ensures structural strength, while the Blue Zinc Plating provides effective protection against rust and wear.
-
Robust & Extended Build: With a solid net weight of 36g and a 60mm overall length, it offers increased reach and stability for larger doors and panels.
-
Simple & Secure Mounting: Designed for permanent installation with an L-shaped bracket featuring 2x mounting holes on 22mm centers and a material thickness of 1.4mm.
Technical Specifications
|
Item
|
Specification
|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
7954-60L-1 (Also marked as 954-60L-1 on drawing)
|
|
Product Name
|
Heavy-Duty Spring Pin Latch
|
|
Primary Material
|
SPCC Steel
|
|
Surface Finish
|
Blue Zinc Plating
|
|
Product Weight
|
36g
|
|
Operation Type
|
Manual Pull-Push (Heavy-Duty Spring Return)
|
|
Key Dimensions
|
Overall Length: 60mm, L-Bracket Dimensions: 86.5mm x 24mm, Plunger Pin Diameter: Ø5.6mm,, Material Thickness: 1.4mm.
|
|
Compliance
|
ISO 9001:2000, SGS, REACH, RoHS, SVHC
|
|
Additional Info
|
Manufacturer Since 1996. OEM/ODM Services Available. The “L” suffix typically indicates a configuration for left-hand opening doors.
|
