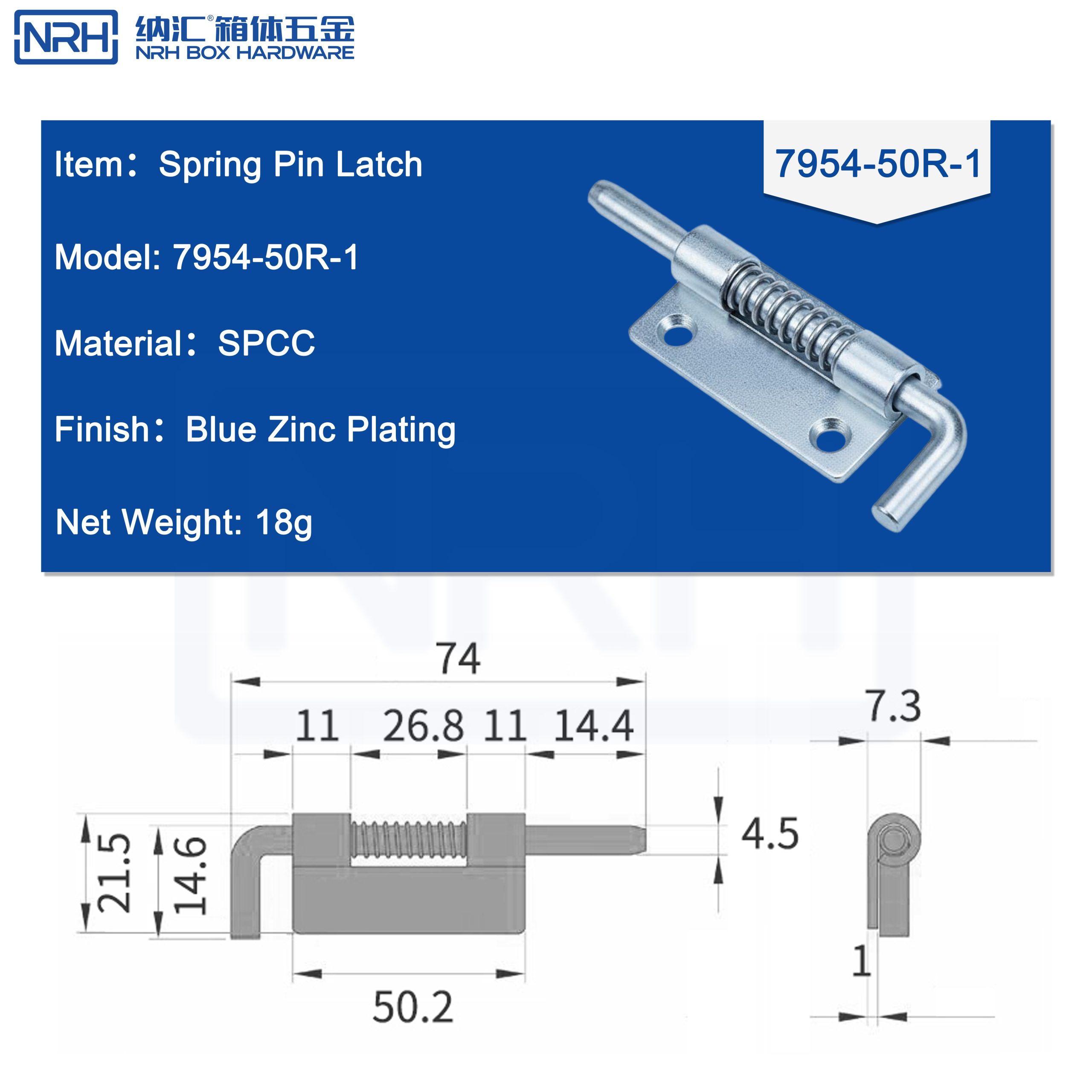

The NRH 7954-50R-1 is a robust and reliable spring pin latch, engineered for secure, tool-free fastening of doors, lids, and panels. Constructed from durable SPCC steel and finished with a protective Blue Zinc Plating, it offers good corrosion resistance for reliable performance in various environments. The design integrates an L-shaped pull handle, a robust compression spring, and a solid mounting plate. Operation is intuitive: pull the handle to retract the pin; release it for automatic, spring-driven locking. Weighing 18g, it is a practical and lightweight latching solution. Manufactured by NRH Box Hardware, a trusted name in industrial hardware since 1996, this product is produced under an ISO 9001:2000 certified quality management system and complies with SGS, REACH, RoHS, and SVHC standards. OEM/ODM services are available for customized applications.
Primary Applications
This versatile latch provides dependable security for a variety of enclosures and access points:
-
Toolboxes & Portable Cases: Ideal for securing lids on professional tool chests, instrument cases, and field service kits.
-
Electrical & Industrial Cabinets: Serves as a reliable fastener for access doors on control panels, server racks, and modular enclosures.
-
Machine Guards & Access Panels: Functions as an effective quick-release mechanism for equipment doors and safety covers.
-
Storage & Furniture: Offers simple and secure locking for cabinets, lockers, and storage compartments.
How It Works (Operating Principle)
The latch operates on a straightforward and dependable spring-loaded mechanism. An internal coil spring maintains constant pressure, holding the pin in its default extended (locked) position.
-
To Unlock: Manually pull the L-shaped handle. This action compresses the spring, fully retracting the pin and allowing the door to swing open.
-
To Lock: After closing, simply release the handle. The spring’s stored energy automatically drives the pin forward to engage a corresponding strike plate or hole, securing the assembly with a positive click.
Features & Specifications
-
Simple Manual Operation: Easy pull-to-open, release-to-lock action for quick, tool-free access.
-
Automatic & Secure Locking: The internal spring ensures reliable, automatic engagement every time.
-
Durable SPCC Construction: SPCC steel provides structural strength, enhanced by Blue Zinc Plating for corrosion protection.
-
Compact & Lightweight Design: With a net weight of 18g, it is a space-efficient component that adds minimal mass.
-
Precise & Easy Mounting: Designed for straightforward installation with clearly defined mounting points.
Technical Specifications
|
Item
|
Specification
|
|
Brand
|
NRH Box Hardware
|
|
Model Number
|
7954-50R-1
|
|
Product Name
|
Spring Pin Latch
|
|
Primary Material
|
SPCC Steel
|
|
Surface Finish
|
Blue Zinc Plating
|
|
Product Weight
|
18g
|
|
Operation Type
|
Manual (Spring-Return)
|
|
Compliance
|
ISO 9001:2000, SGS, REACH, RoHS, SVHC
|
|
Additional Info
|
Manufacturer Since 1996. OEM/ODM Services Available.
|
