Spring Pin Latch Product Overview

NRH 7954-32R, spring pin latch, stainless steel latch, SUS201 latch, manual latch, quick-release lock, ball plunger, toolbox latch, cabinet lock, industrial hardware

The NRH 7954-32R is a robust and reliable manual spring pin latch, expertly engineered for secure and tool-free fastening. As detailed in the specifications, it is constructed from SUS201 stainless steel and features a Raw Blank (uncoated) finish, offering inherent corrosion resistance and a clean, industrial aesthetic. Its simple yet effective design consists of an L-shaped pull handle, a high-tension coil spring, and a sturdy base plate. The operation is intuitive: pull the handle to retract the pin against spring pressure for access; release it to allow automatic, spring-driven locking. Weighing only 10g and built for durability, it is an ideal latching solution. Proudly manufactured by NRH Box Hardware, a specialist since 1996, this product is backed by ISO 9001:2000 quality management and complies with SGS, REACH, and SVHC standards. OEM/ODM services are available.

Primary Applications

This versatile latch provides a dependable closure for a wide array of access points:

Professional Tool & Equipment Cases: Secure lids on toolboxes, instrument cases, and field service kits.
Industrial & Electrical Enclosures: Reliable door fasteners for control cabinets, server racks, and modular panels.
Machinery Guards & Safety Covers: Quick-release mechanism for equipment access doors and protective covers.
General Storage & Furniture: Simple locking for cabinets, storage units, and workstations.

How It Works (Operating Principle)

The latch operates on a fundamental spring-loaded principle. The internal compression spring constantly pushes the Ø3.2mm stainless steel pin into the extended (locked) position.

To Unlock: Manually pull the L-shaped handle. This action compresses the spring, retracting the pin completely and allowing the door or panel to swing open.
To Lock: Simply close the door and release the handle. The stored energy in the spring automatically and instantly drives the pin forward, engaging a pre-drilled strike hole or edge to securely lock the assembly with a positive feel.

Features & Specifications

Durable SUS201 Construction: SUS201 stainless steel provides good strength and corrosion resistance for long service life.
Manual Pull-Push Action: Offers a simple, reliable, and tool-free pull-to-open, release-to-lock operation.
Automatic Spring Return: Ensures secure, positive locking every time the handle is released.
Compact & Lightweight: With an overall length of 53.4mm and a net weight of 10g, it adds minimal size and mass.
Easy & Secure Mounting: The base plate is designed with 2x Ø3.2mm mounting holes on 19mm centers for straightforward screw installation.

Technical Specifications

Item	Specification
Brand	NRH Box Hardware
Model Number	7954-32R
Product Name	Spring Pin Latch
Primary Material	SUS201 Stainless Steel
Surface Finish	Raw Blank
Product Weight	10g
Operation Type	Manual (Spring-Return)

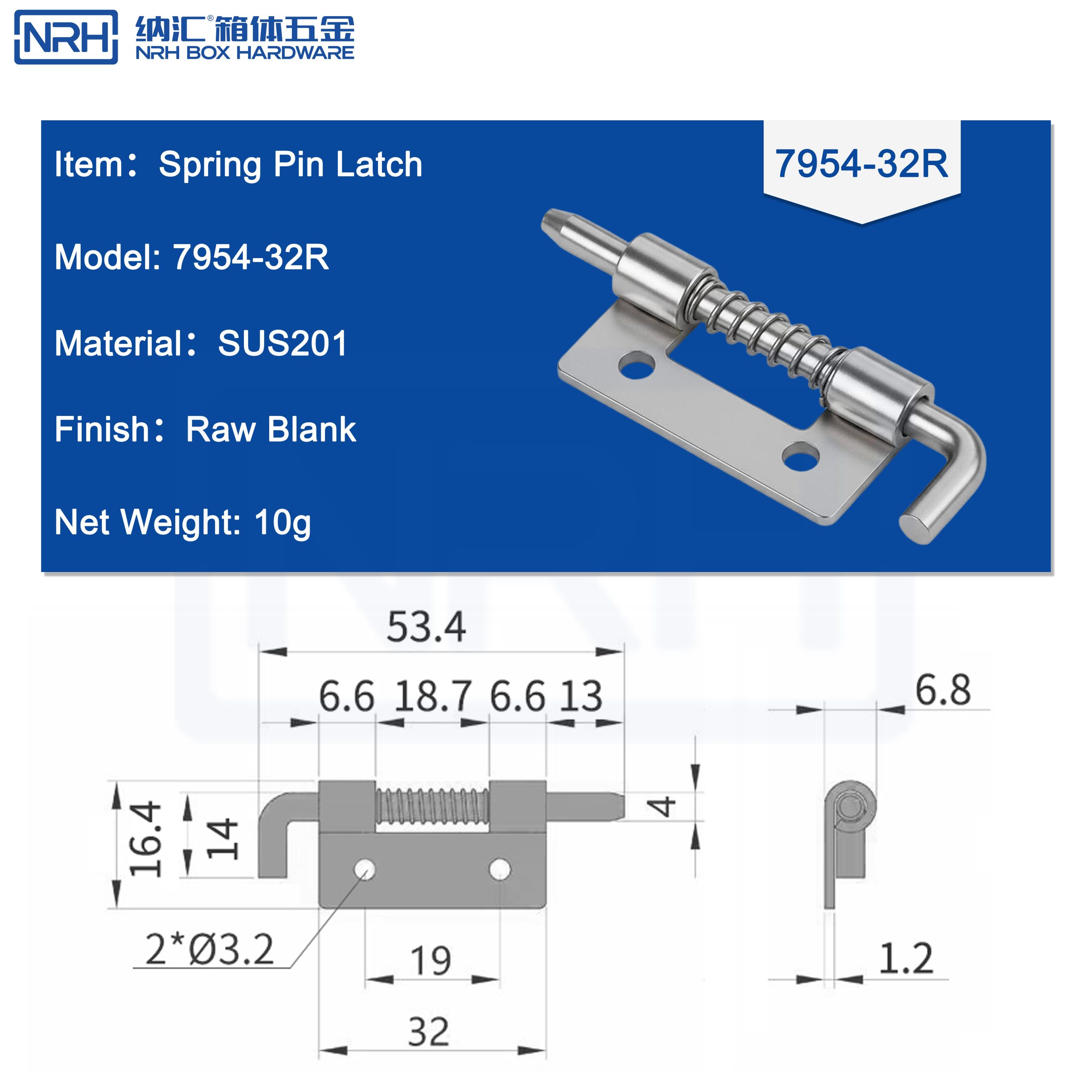

Key Dimensions	Overall Length: 53.4mm, Base Width: 32mm, Pin Diameter: Ø3.2mm, Mounting Hole Centers: 19mm, Mounting Holes: 2 x Ø3.2mm.
Compliance	ISO 9001:2000, SGS, REACH, SVHC
Additional Info	Manufacturer Since 1996. OEM/ODM Services Available.
