NRH 7954-32R Spring Pin Latch | SPCC Blue Zinc Quick-Release Lock for Toolboxes

Functional characteristics

NRH 7954-32R, spring plunger, ball plunger latch, quick-release latch, cabinet latch, toolbox lock, pull latch, industrial hardware, spring pin

The NRH 7954-32R is a reliable and user-friendly spring pin latch, designed for simple and secure fastening of doors, lids, and access panels without tools. Constructed from durable SPCC steel and finished with Blue Zinc Plating, it offers good corrosion resistance for long-term use. The latch operates on a straightforward spring-loaded principle: pulling the L-shaped handle retracts the pin for access; releasing it allows the spring to automatically extend the pin, securely locking the panel. Weighing only 11g, it is a compact and lightweight solution. As a product of NRH Box Hardware, a trusted manufacturer since 1996, it complies with ISO 9001:2000, SGS, REACH, RoHS, and SVHC standards. OEM/ODM services are available for custom requirements.

Primary Applications

This versatile latch is perfect for providing a secure closure on a variety of enclosures:

Portable Cases & Toolboxes: An ideal latch for tool chests, instrument cases, and field service kits.
Electrical & Industrial Enclosures: A reliable fastener for doors on control panels, server cabinets, and junction boxes.
Machine Guards & Covers: Suitable as a quick-release mechanism for equipment access panels and safety doors.
Furniture & Storage Units: Provides a secure closure for cabinets, lockers, and storage compartments.

How It Works (Operating Principle)

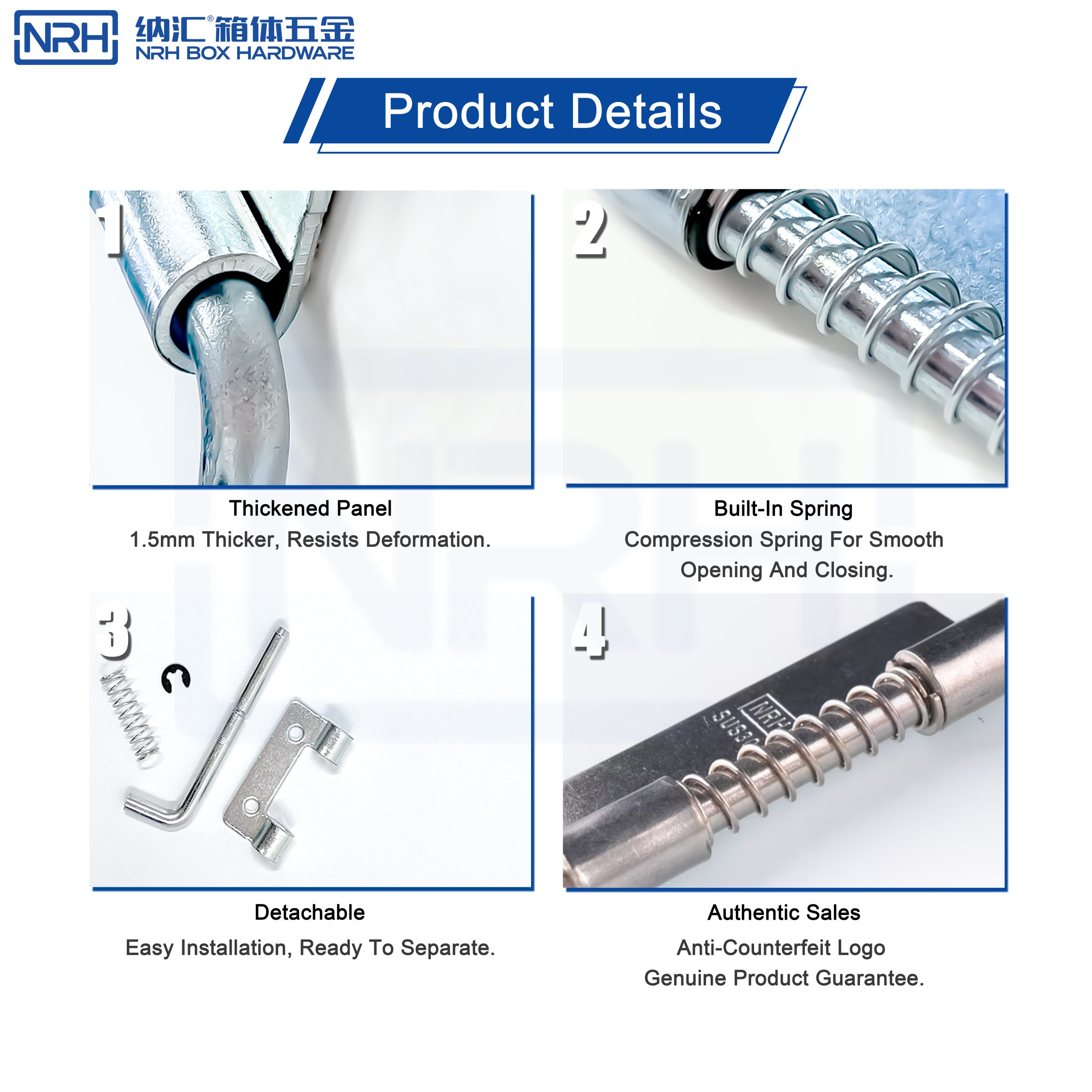

The latch employs a simple and effective spring-loaded mechanism. The internal compression spring holds the 4mm diameter pin in the extended (locked) position.

To Unlock: Pull the L-shaped handle outward. This action compresses the spring and fully retracts the pin from the strike plate or receiving hole. Note: The door must be designed to swing open awayfrom the side where the handle is mounted.
To Lock: Simply align the door with the frame and release the handle. The spring automatically drives the pin forward to engage the strike hole, securing the door with a positive click.

Features & Specifications

Tool-Free, One-Handed Operation: Features a simple pull-to-open, release-to-lock action for quick and easy access.
Automatic & Secure Locking: The internal spring ensures reliable, automatic engagement every time the handle is released.
Durable SPCC Construction: Made from SPCC steel for strength, with Blue Zinc Plating for corrosion protection.
Compact & Lightweight Design: Weighs only 11g with a low-profile form factor, minimizing space and weight.
Easy Installation: Designed with a flat base plate featuring 2x Ø3.2mm mounting holes spaced 19mm apart (center-to-center) for simple screw or rivet mounting.

Technical Specifications

Item	Specification
Brand	NRH Box Hardware
Model Number	7954-32R
Product Name	Spring Pin Latch
Primary Material	SPCC Steel
Surface Finish	Blue Zinc Plating
Product Weight	11g
Operation	Manual Pull-Push (Spring Return)

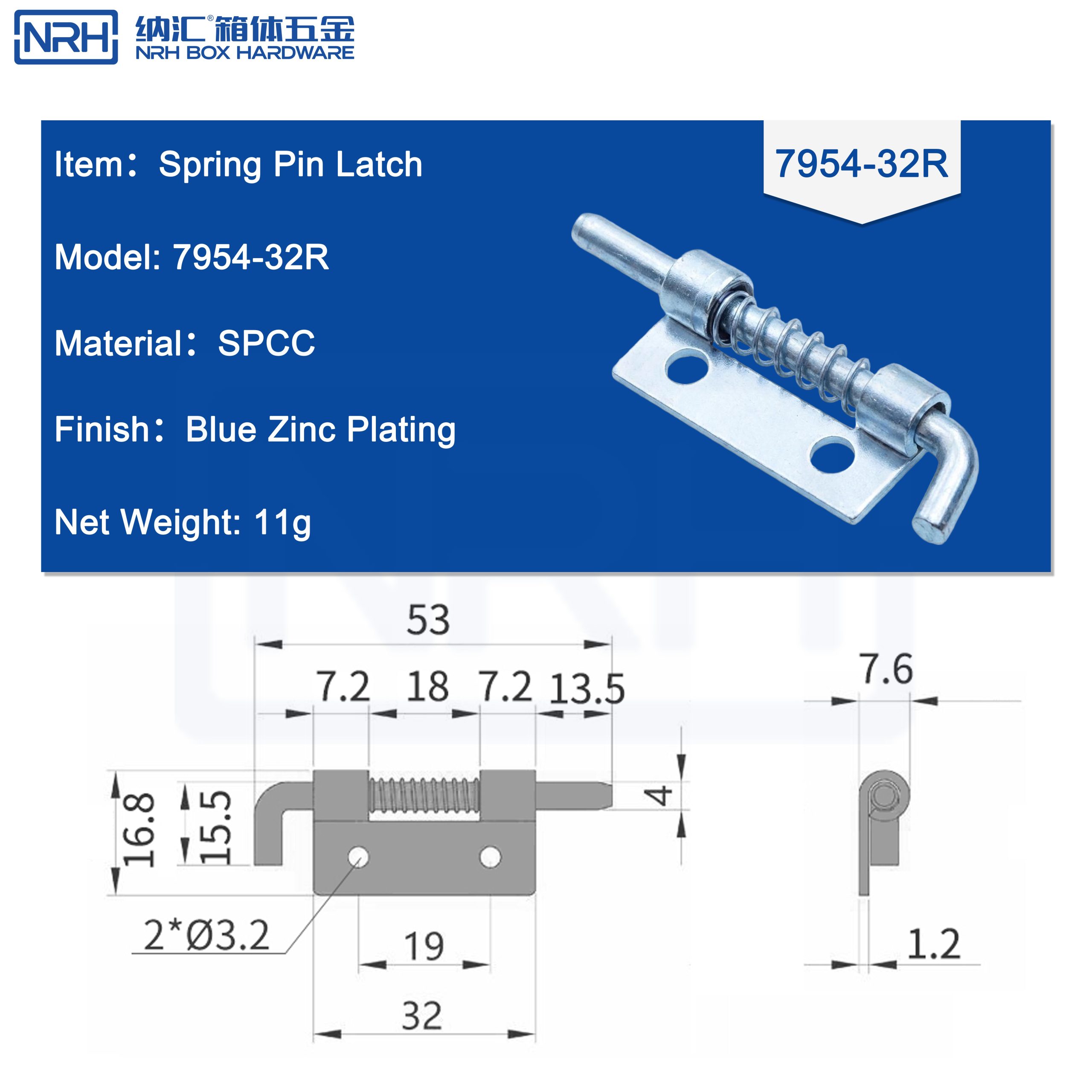

Key Dimensions	Overall Length: 53mm, Mounting Hole Centers: 19mm, Plunger Pin Diameter: Ø4mm, Mounting Holes: 2 x Ø3.2mm, Material Thickness: 1.2mm.
Compliance	ISO 9001:2000, SGS, REACH, RoHS, SVHC
Additional Info	Manufacturer Since 1996. OEM/ODM Services Available.
